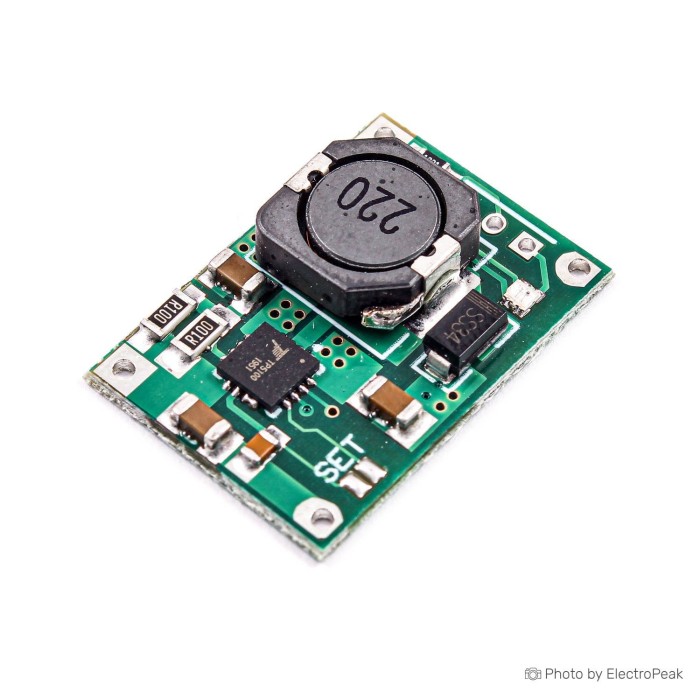

TP5100 2 Cells/Single Li-ion Battery Charger Module
$0.2900
In stock
SKU
BAT-03-029
Volume discounts:
- +100 4 % $0.2790
- +500 6 % $0.2740
- +1000 8 % $0.2680
- +5000 9 % $0.2630
- +10000 11 % $0.2570
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Dual USB Li-ion Battery Power Bank Charger Module - 5V, 1A, 2A
Previous
TP5100 2A Single and Double Lithium Battery Charger Module
Due to the dimensions and very small package of this module, it is very suitable for portable use.
Features of TP5100 2 Cells/Single Li-ion Battery Charger Module:
- Input voltage: 8.8V~17V DC
- Charge status: full and unloaded blue lights, charging red
- Double 8.4v / 4.2v lithium rechargeable single
- Programmable charge current. 0. 1A-2A
- Programmable steady precharge current 10% -100%
- Wide operating voltage, maximum reaches 17V
- Chip temperature protection, overcurrent protection, under voltage protection
- Battery temperature protection, reverse battery shutdown, short circuit protection
- Switching frequency 400Khz, usable inductance 20uH and more
- PWR_ON Power battery for switching control
- Size: 25mm x 17mm x 5mm (LxWxH)
