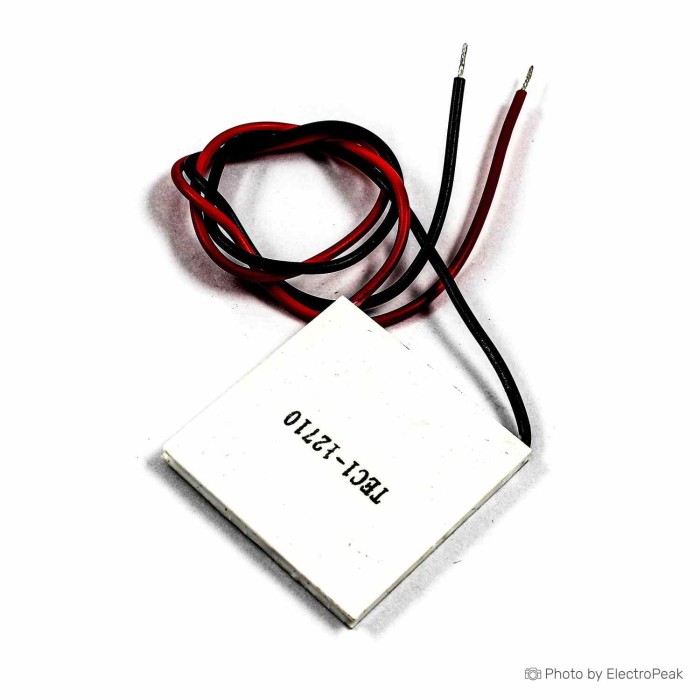

TEC1-12710 Thermoelectric Cooler Peltier - 12V, 10A
$3.2500
In stock
SKU
ELC-11-001
Volume discounts:
- +25 4 % $3.1200
- +100 6 % $3.0500
- +300 8 % $2.9900
- +500 10 % $2.9200
- +1000 12 % $2.8600
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
TEC1-12708 Thermoelectric Cooler Peltier - 12V, 8A
Previous
Description
TEC1-12710 Semiconductor Thermoelectric Peltier Cooler [12V, 10A] package contains of 9A thermoelectric coolers. The thermoelectric cooler also is known as TEC or Peltier cooler, is an active semiconductor part, which enables to give heat on one side and get the heat on another side, results in differential temperature on its sides, means one side is cooler and another side is hotter than ambient. In other words, a Peltier cooler/heater is an active heat pump, which consumes electric power to transfer heat energy from one side to another side. Therefore, it can be used for warming or cooling something or even simultaneously warming a thing and cooling another thing. This TEC is supplied with 12V and 10A current. It should be used with a heatsink to prevent burning due to overhot. Also for better heat conducting, thermal paste using is recommended.
Features
Model:Â TEC1-12710
Rated voltage: 12V
Internal Resistance(): 1.2 to 1.5
Working current:Â Imax=10A
Maximum Power (W): 120
Maximum temperature: Tmax (Qc = 0) above 58 „.
Cable length: 30cm
Material: Plastic + ceramics
Size: 40mm x 40mm x 3.4mm
Notes:
Use with a heatsink to prevent burning due to overhot.
