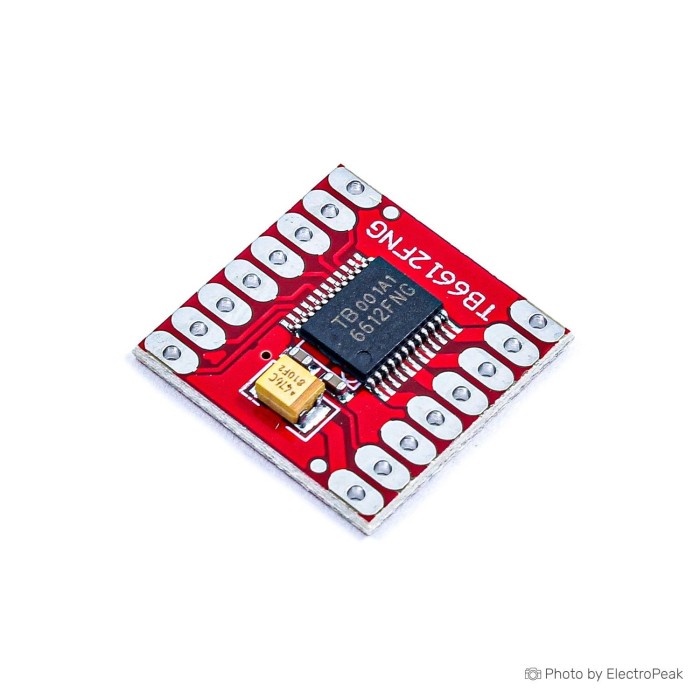

TB6612FBG Dual-Channel Motor Driver Module
$1.2500
In stock
SKU
MTR-08-022
Volume discounts:
- +100 6 % $1.1700
- +300 9 % $1.1400
- +500 11 % $1.1100
- +1000 13 % $1.0900
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
VNH2SP30 Monster Motor Driver Shield for Arduino
Previous
Description
The TB6612FNG motor driver module is capable of launching two DC motors in a constant current of 1.2A (peak current 3.2A). Two input signals (IN1 and IN2) can be used to control the engine in one of four modes: CW, CCW, short-brake and stop. The output of the two motors of this module (A and B) can be controlled individually. Each engine speed is controlled by a PWM input signal with a frequency up to 100KHz. The STBY pin must be in High mode to exit the standby mode. The logical power supply voltage (VCC) can be in the range of 2.7 to 5 volts, and the motor supply voltage (VM) is limited to a maximum voltage of 15 volts. The output current of this module is 1.2A per channel (or 3.2A for a short pulse signal). This module is fully compatible with Arduino wins.Â
Features
Supply Voltage: VM = 15V MAX and VCC = 2.7-5.5VÂ
Output Current: Moderate 1.2A and peak current 3.2A
CW / CCW / short brake / stop control with standby control for motorÂ
with internal thermal shutdown circuit and low voltage measurementÂ
