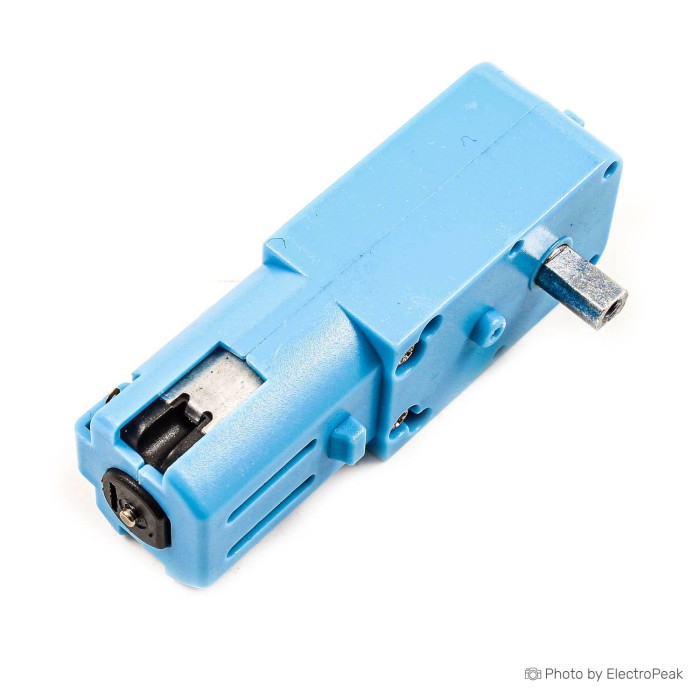

Single Axis TT DC Gear Motor - 1:90, 3-6V (Metal Shaft)
$1.7500
In stock
SKU
MTR-02-036
Volume discounts:
- +100 7 % $1.6200
- +300 10 % $1.5800
- +500 13 % $1.5300
- +1000 15 % $1.4900
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Dual Axis TT DC Gear Motor - 1:90, 3-6V (Metal Shaft)
Previous
Description:
These durable (but affordable!) gearbox motors (also known as 'TT' motors) are an easy, low-cost way to get your projects moving. This is a TT DC All-Metal Gearbox Motor with a gear ratio of 1:90 about double of the 'standard' 1:48 ratio. That gives them higher torque but slower rotational speed. Since they're slower they're good for robots where strength is more important than speed. so they won't strip as easily, and they're twice as slow (and twice as powerful) given their lower gearbox ratio.
You can power these motors with 3VDC up to 6VDC, they'll of course go a little faster at the higher voltages.
Features:
At 3VDC we measured 80mA @ 60 RPM no-load, and 0.5 Amps when stalled
At 4.5VDC we measured 90mA @ 90 RPM no-load, and 0.8 Amps when stalled
At 6VDC we measured 100mA @ 120 RPM no-load, and 1.0 Amps when stalled
Delay ratio 1:90
Input: 3V-6V
Write Your Own Review
