PCB Mount SMA Female Connector (Right Angle)
SAVE
As low as
$0.0600
In stock
Only %1 left
SKU
CAB-26-002
PCB Mount SMA Female Connector (Right Angle) is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
IPEX/IPX UH.L Female Coaxial Single-Head Connection Cable
Previous

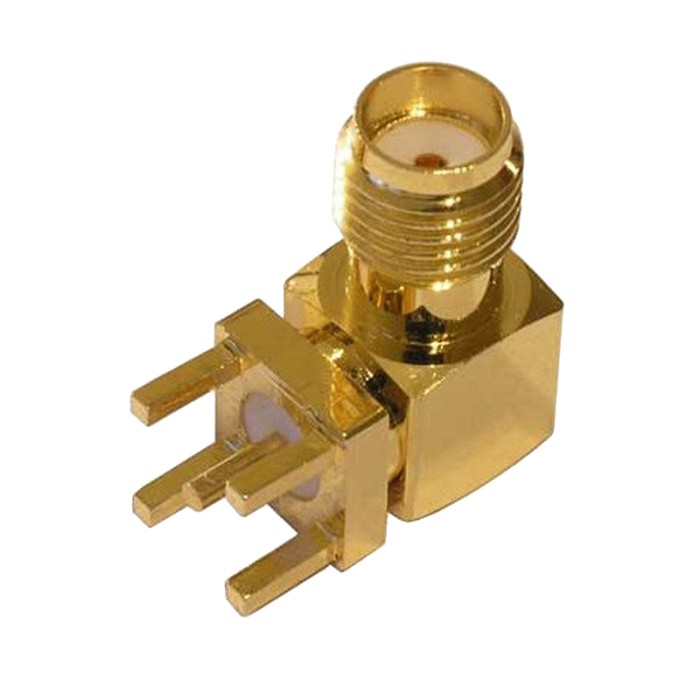

The PCB Mount SMA Female Connector (Right Angle) is designed for high-performance applications requiring excellent electrical characteristics and durability. With a 50Ω impedance and a frequency range of 0 to 6 GHz, this connector provides low reflection and reliable signal integrity. Its right-angle design facilitates compact and efficient PCB mounting. The coupling mechanism ensures secure connections with minimal signal loss. Manufactured with precision, it offers a robust solution for various electronic applications.
Specifications of PCB Mount SMA Female Connector (Right Angle)
-
Impedance: 50Ω
-
Frequency Range: 0~6 GHz
-
VSWR:
-
Straight Type: ≤ 1.3 max
-
Right Angle Type: ≤ 1.5 max
-
-
Dielectric Withstanding Voltage:
-
1000 V rms min for RG142, RG405
-
750 V rms min for RG316, RG402
-
500 V rms min for RG178
-
-
Working Voltage:
-
500 V rms max for RG142, RG405
-
375 V rms max for RG316, RG402
-
170 V rms max for RG178
-
-
Center Contact Resistance: ≤ 6.0 mΩ
-
Outer Contact Resistance: ≤ 2.0 mΩ
-
Insulation Resistance: ≥ 5 x 10³ mΩ
-
Coupling: 1/4-36 thread
-
Contact Retention: 15 in-lbs min.
-
Coupling Nut Torque: 30 in-lbs min.
-
Durability (Mating): ≥ 500 cycles (For Beryllium Copper Contact)
-
Environmental Characteristics:
-
Temperature Range: -65°C to +165°C
-
Vibration: MIL-STD-202 Meth.204
-
Corrosion Resistance: MIL-STD-202 Meth.101
-
