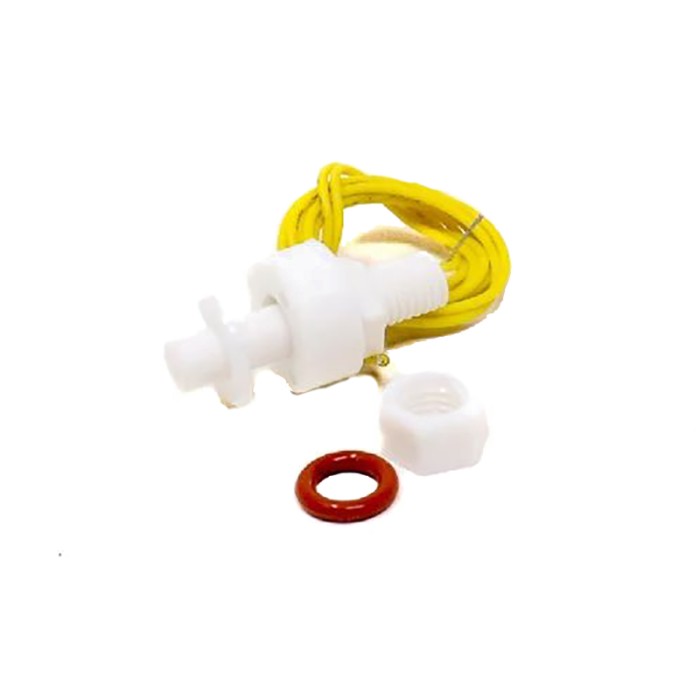

P25 Liquid Level Sensor- Float Switch
$1.2500
In stock
SKU
SEN-20-022
Volume discounts:
- +100 6 % $1.1800
- +300 8 % $1.1500
- +500 10 % $1.1300
- +1000 12 % $1.1000
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
P45 Liquid Level Sensor- Float Switch
Previous
The P25 Liquid Level Sensor - Float Switch is a versatile and reliable device designed for monitoring liquid levels in various applications. It features a durable polypropylene (P.P) float ball and body, ensuring excellent performance in different environments. With a maximum contact rating of 10W and the ability to switch voltages up to 220V, this float switch is ideal for both household and industrial uses, including water tanks, aquariums, and sump pumps. Its compact design and straightforward operation make it easy to integrate into existing systems.
Specifications of P25 Liquid Level Sensor - Float Switch
-
Max Contact Rating: 10W
-
Max Switching Voltage: 220V
-
Max Switching Current: 0.5A
-
Max Breakdown Voltage: 220VDC
-
Max Carry Current: 1.0A
-
Max Contact Resistance: 100 mΩ
-
Temperature Rating: -10°C to +60°C
-
Float Ball Material: Polypropylene (P.P)
- Float Body Material: Polypropylene (P.P)
