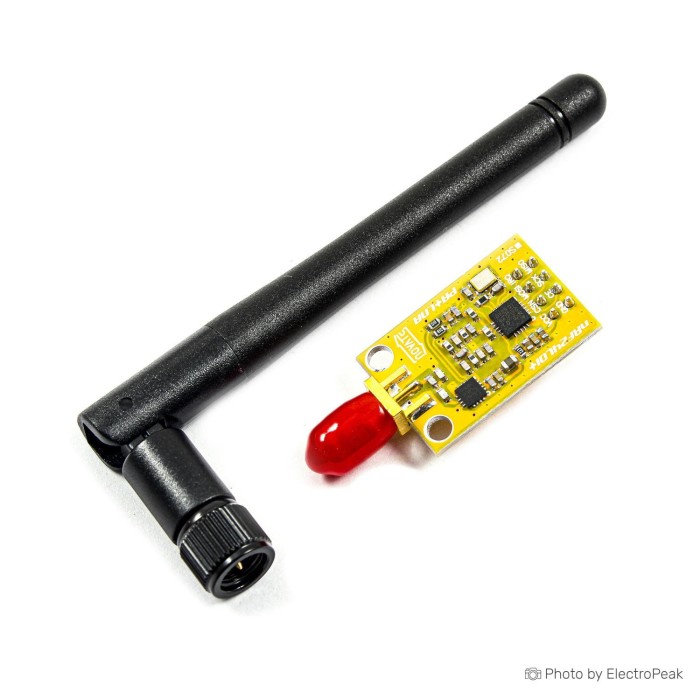

RF24L01+ PA+LNA Wireless Transceiver Module - 1800m Range
$9.5000
In stock
SKU
COM-09-033
Volume discounts:
- +25 4 % $9.1200
- +50 6 % $8.9300
- +100 8 % $8.7300
- +300 10 % $8.5400
- +500 12 % $8.3500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NRF51822 Wireless Bluetooth Module - ARM Cortex M0 + NRF24L + Bluetooth 4.0 Previous
The GT-24 NRF24L01+ PA+LNA Wireless Transceiver Module is a 2.4 GHz wireless transceiver module with PA and LNA support. It is designed for wireless data transmission and uses the SPI communication protocol. The module includes a PCB antenna and ipex carrier antenna type. It supports Multiceiver operation with 6 data pipes and separate 32-byte FIFO buffers for TX and RX. The module also includes Auto Acknowledge support.
Features of GT-24 NRF24L01+ PA+LNA Wireless Transceiver Module - 2.4GHz
- PA and LNA support
- 2.4 GHz operating frequency
- SPI communication protocol
- Multiceiver with 6 data pipes
- Separate 32-byte TX and RX FIFO
- Auto Acknowledge support
- PCB and ipex carrier antenna type
Specifications of GT-24 NRF24L01+ PA+LNA Wireless Transceiver Module - 2.4GHz
- Model: GT-24
- Size: 30x14mm
- Working Frequency: 2.4-2.5 GHz
- Interface: 1x8x1.27 mm / 2x4x2.54 mm
- Multiceiver with 6 data pipes
- Separate 32-byte FIFO for TX and RX
- Supply Voltage: 2-3.6 V
- Range: 1100 m (with suitable antenna)
- Transmit Power: 4 adjustable levels
- Standby Current: 30 uA
- Data Rate: 250 kbps, 1 Mbps, 2 Mbps
- Maximum Output Power: +20 dBm
- Receive Sensitivity at 2 Mbps: -92 dBm
- Receive Sensitivity at 1 Mbps: -95 dBm
- Receive Sensitivity at 250 Kbps: -104 dBm
- TX Current (Peak): 90 mA
- RX Current (Peak): 20 mA
- Sleep Current: 4.2 uA
- PA Gain: 20 dB
- LNA Gain: 10 dB
- LNA Noise: 2.6 dB
- Antenna Gain (Peak): 2 dBI
- Auto Acknowledge: Yes
- Antenna Type: PCB, ipex carrier
- Communication Protocol: SPI
- Working Temperature: -40 to +85 C
- Storage Temperature: -40 to +125 C
- Pin Order: VCC, CE, CSN, SCK, MOSI, MISO, IRQ
How to Use GT-24 NRF24L01+ PA+LNA Wireless Transceiver Module - 2.4GHz
- Connect the module pins according to the pin order.
- Use the SPI communication protocol for wireless data transmission setup.
- Configure the supply voltage, data rate, and transmit power within the listed limits.
More Info
- Wireless data transmission requires two or more modules to create a link.
- The module can work in transmit mode or receive mode at one time.
| Interface Type | SPI |
|---|---|
| Operating Voltage (V) | 2 - 3.6V |
| Operating Current (mA) | 90mA, 20mA, 4.2uA, 30uA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 30 x 14 mm |
| Mounting Type | SMD (Surface Mount) |
| Connector | Pin Header |
| Wireless Protocol | Enhanced ShockBurst (ESB) |
| Frequency Band | 2.4GHz |
| Data transmission rate | 250 kbps, 1 Mbps, 2 Mbps |
| RF Modulation | GFSK |
| TX Power (dBm) | 20dBm |
| Range (m) | 1800m |
| SIM Slots | 0 |
| Chipset | nRF24L01+ |
| Gain (dBi) | 20dB, 10dB, 2dBi |
| Accessories | External antenna, PCB Antenna |
| Antenna Type | Internal Antenna, External IPEX/IPX |
| Receiver Sensitivity | -92dBm @ 2Mbps, -95dBm @ 1Mbps, -104dBm @ 250Kbps |
| Storage Temperature | -40 to +125 °C |
