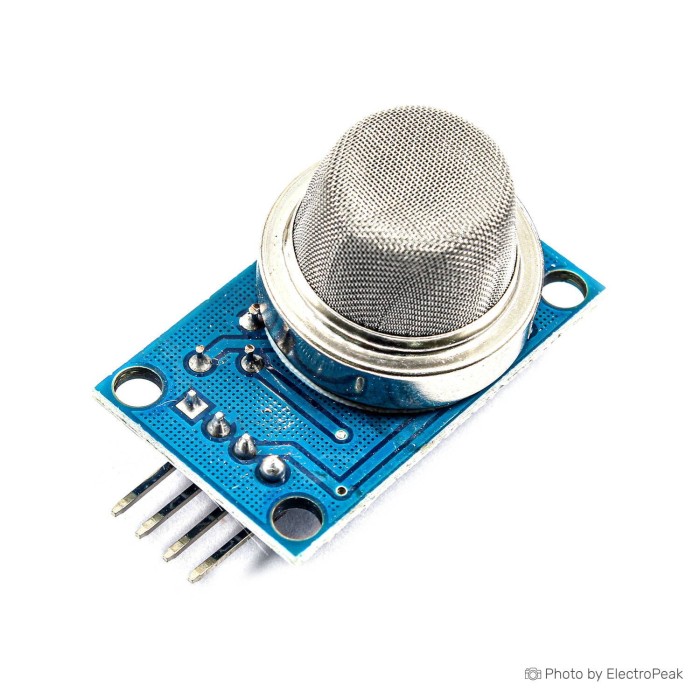

MQ-135 Air Quality and Hazardous Gas Sensor Module
$0.8000
In stock
SKU
SEN-16-013
Volume discounts:
- +100 6 % $0.7500
- +300 8 % $0.7400
- +500 10 % $0.7200
- +1000 11 % $0.7100
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
MQ-7 Carbon Monoxide Detection Sensor Module
Previous
DescriptionÂ
Detecting air quality is getting more important as we need to take care of the environment.
 MQ135 Air Quality Sensor will be a good assistant and provide useful information about the surrounding air. Sensitive material of this sensor is SnO2, which with lower conductivity in clean air. When the sensor senses combustible gas, the conductivity of the sensor and gas concentrations will increase. It is better to use a simple electro circuit and convert the change of conductivity to correspond output signal of gas concentration. MQ135 gas sensor has high sensitivity to Ammonia, Sulfide and Benze steam. It is also sensitive to smoke and other harmful gases. MQ135 Air Quality Sensor is a low cost and suitable for different applications. It can be used for the Surrounding environment noxious gas detection device. It can measure ammonia, aromatics, sulfur, benzene vapor and other harmful gases/smoke that its tested concentration range is: 10 to 1000ppm. In order to use it with Arduino, connect DO to any digital pin (if you want it in digital input) or connect AO at analog pin (if you want it in analog input).
Features
Model: MQ135
Working Voltage: 5V
Working Current: 150mA
DOUT: TTL output
AOUT: Analog output
Interface: Analog, TTL
Preheat Time: Over 20s
Pin Number: 4 Pins
Size: 32mm x 22m x 27mm
