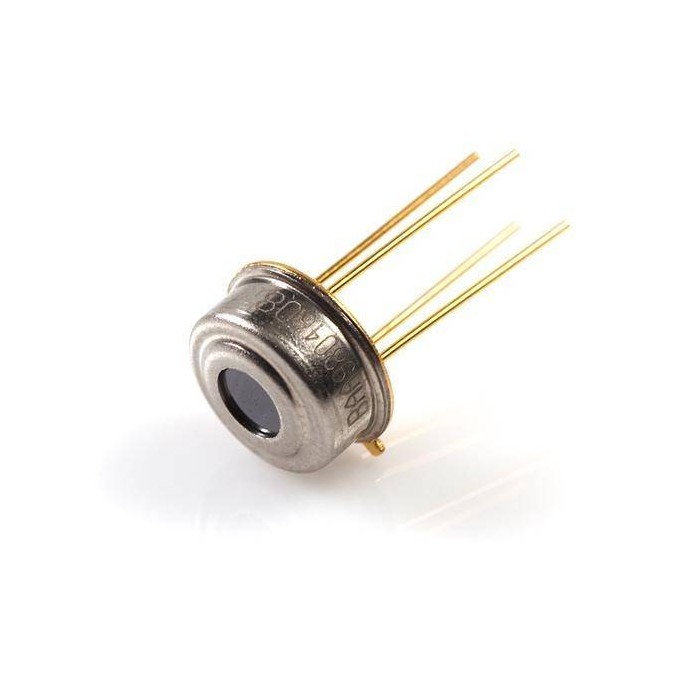

MLX90614-BAA Non-Contact Infrared Temperature Sensor
$6.7500
In stock
SKU
SEN-10-019
Volume discounts:
- +25 4 % $6.4900
- +50 6 % $6.3600
- +100 8 % $6.2400
- +300 9 % $6.1100
- +500 11 % $5.9800
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Description
MLX90614ESF is an infrared thermometer designed for non-contact temperature sensing. An internal 17-bit ADC and a powerful DSP contribute to the MLX90614's high accuracy and resolution. It has a huge number of applications including body temperature measurement and movement detection.
The MLX90614 provides two methods of output: PWM and SMBus (i.e. TWI, I2C). The 10-bit PWM output provides a resolution of 0.14°C, while the TWI interface has a resolution of 0.02°C. The MLX90614 is factory calibrated in wide temperature ranges: -40 to 85°C for the ambient temperature and -70 to 382.2°C for the object temperature. The measured value is the average temperature of all objects in the Field Of View of the sensor. The MLX90614 offers a standard accuracy of 0.5°C around room temperatures.
This device comes in an industry standard TO-39 package. We're carrying the 3V version of this sensor.
Features
Small size, low cost
Easy to integrate
-40 to +85°C for sensor temperature
-70 to +380°C for object temperature
SMBus compatible digital interface
Customizable PWM output for continuous reading
High accuracy of 0.5°C over wide temperature range (0 to +50°C for both Ta and To)
Measurement resolution of 0.02°C
Single and dual zone versions
Simple adaptation for 8 to 16V applications
Power saving mode
Different package options for applications and measurements versatility
