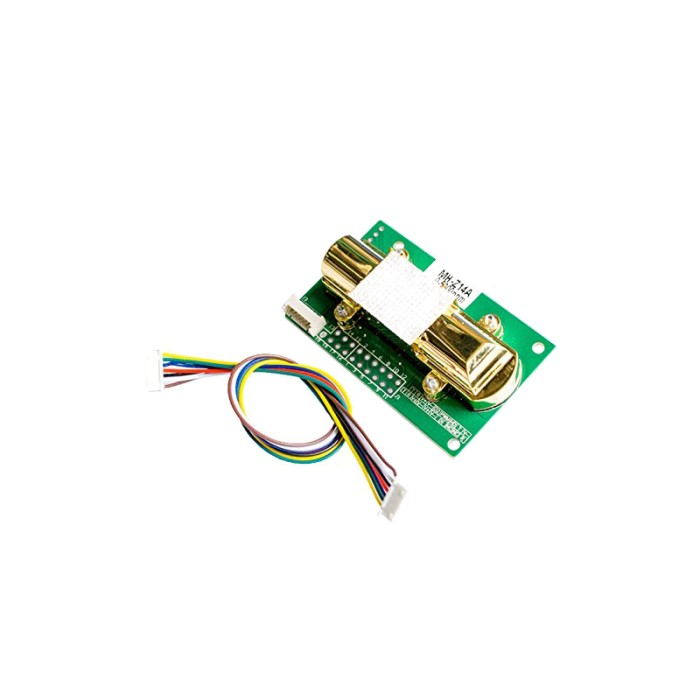

MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module
$30.5000
In stock
SKU
SEN-16-041
Volume discounts:
- +10 4 % $29.3200
- +25 6 % $28.7200
- +50 8 % $28.1300
- +100 10 % $27.5400
- +300 12 % $26.9500
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Oxidation-Reduction Potential (ORP) Redox Water Quality Detection Module
Previous
The MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module is a high-performance CO2 sensor designed for indoor air quality monitoring and control. Utilizing non-dispersive infrared (NDIR) technology, it provides accurate and reliable CO2 measurements with a long operational life. This module is ideal for applications such as HVAC systems, air purifiers, and other environmental monitoring devices. Its compact design and simple interface make it easy to integrate into various systems.
Specifications of MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module:
- Measurement Range: 0 to 10000 ppm (parts per million) optional
- Operating Voltage: 4.5V to 5.5V
- Average current: <60mA
- Peak current: 150mA
- Output Signals:
- UART (serial)
- PWM (pulse-width modulation)
- Analog output (DAC) (default is 0.4~2V)
- Response Time: T90 < 120s
- Operating Temperature: -10°C to 50°C
- Dimensions: 57.5×34.7×16mm
- Applications: Ideal for HVAC systems, indoor air quality monitors, greenhouses, and other CO2 monitoring applications.
Datasheet of MH-Z14A NDIR Infrared Carbon Dioxide Sensor Module:
