M162 LCR Meter DIY Kit
$71.7500
In stock
SKU
PRO-01-038
Volume discounts:
- +5 4 % $69.0500
- +10 6 % $67.7000
- +25 8 % $66.3600
- +50 9 % $65.0100
- +100 11 % $63.6600
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
DWIN PGT05 JTAG Burner
Previous

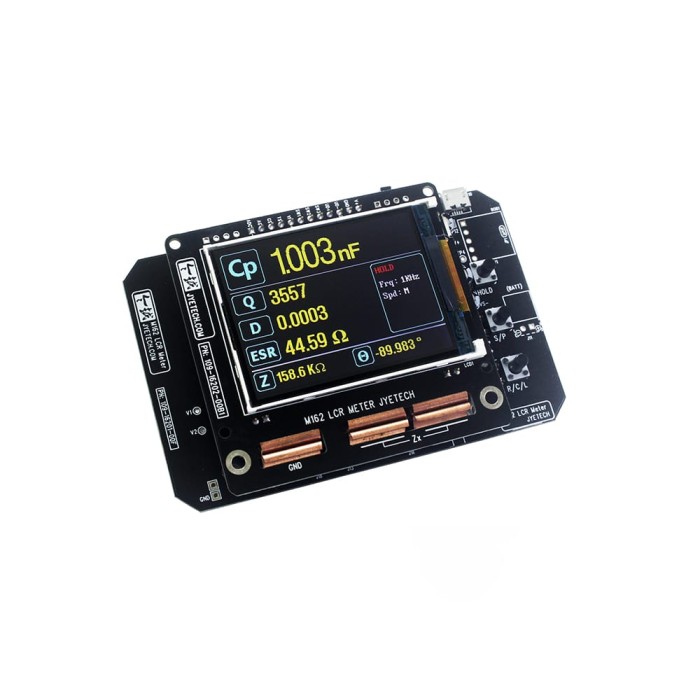

The M162 LCR Meter is a versatile and accurate meter designed for measuring inductance, capacitance, and resistance in electronic components. With its high precision and wide measurement range, this meter provides reliable and consistent results for all your testing needs. It has a compact size and is easy to operate, making it suitable for both professionals and hobbyists.
Equipped with a large LCD display and intuitive interface, the M162 LCR Meter offers easy reading and control of measurement values. It also has a built-in auto power-off function, helping to conserve battery life for extended use. With its durable and reliable design, this meter is a top choice for all your electronic testing and troubleshooting needs. Upgrade to the M162 LCR Meter and take your projects to the next level.
Specification of M162 LCR Meter:
- Resistance range: 0.1ohm — 20M ohm
- Capacitance range: 1pF — 20mF
- Inductance range: 1uH — 20KH
- Fully automatic ranging
- Accuracy: about 1%
- Measurement frequency: 1KHz/100Hz selectable
- Measurement voltage: 0.5Vpp
- Built-in virtual USB comport for data output and firmware upgrade
- Serial data output via USB comport or direct LVTTL
- Display HOLD function
- USB/Battery powered
- Easy to build, easy to use
- Optional acrylic enclosure (sold separately)
- Accept customization for different measurement frequency (< 50KHz) and voltage (< 2Vpp)
