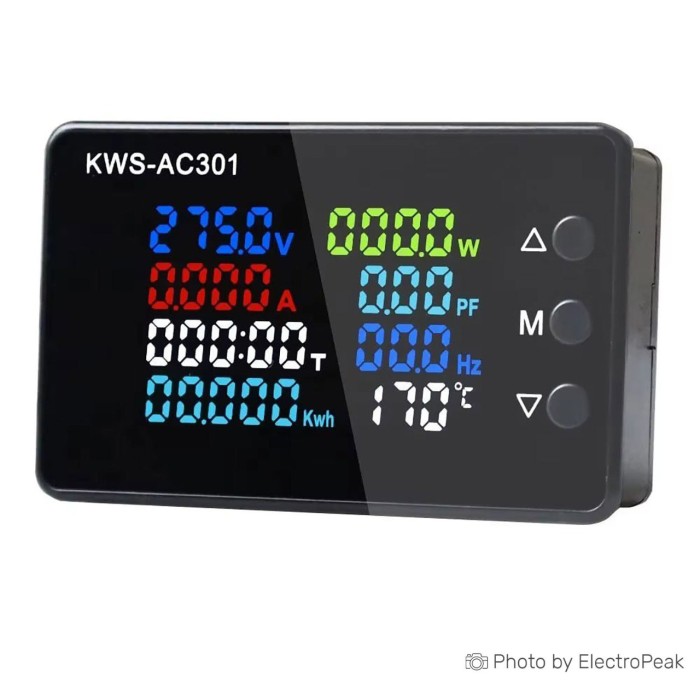

The KWS-AC301 Power Meter is a versatile and precise instrument designed for comprehensive electrical measurement. It accurately measures voltage, current, power, capacity, timing, temperature, frequency, and power factor. Available in models with or without 485 communication capabilities, it caters to different monitoring needs. With its built-in shunt, the KWS-AC301 offers reliable performance and ease of use, making it an ideal tool for both residential and industrial applications.
Specifications of KWS-AC301 Power Meter
- Voltage Measurement Range: AC 50 - 300V
- Shunt Type: Built-in
- 485 Communication: No
- AC301-20A: Without 485 communication
- AC301L-20A: With 485 communication
- Current Measurement Range: 0 - 20A
- Power Measurement Range: 0 - 4400W
- Capacity Measurement Range: 0.01 - 99999 kWh
- Timing Measurement Range: 0 - 999 hours
- Temperature Range: -10°C to 150°C
- Frequency Measurement Range: 50 - 60Hz
- Power Factor Range: 0.01 - 1 PF
Datasheet of KWS-AC301 Power Meter
- KWS-AC301 Power Meter Datasheet
- Arduino Code:
GitHub - SensorsIot/KWS-AC301
