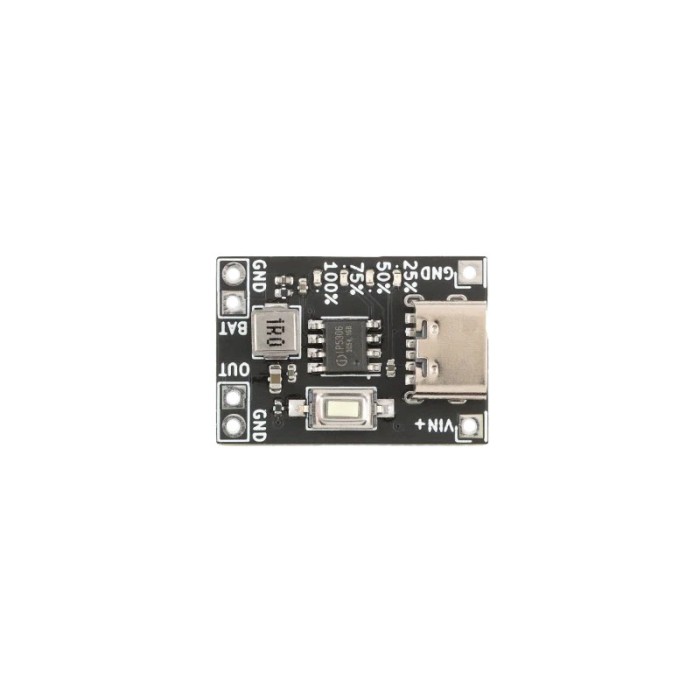

IP5306 Lithium Battery Boost Charging Module 5V/2A with Type-C
$0.9500
In stock
SKU
BAT-03-085
Volume discounts:
- +100 6 % $0.8900
- +300 8 % $0.8700
- +500 11 % $0.8500
- +1000 12 % $0.8400
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Mini Battery Level Indicator 1S Li-ion
Previous
The IP5306 Lithium Battery Boost Charging Module is a versatile power management solution designed to charge and boost lithium batteries. It supports synchronous switch-mode charging with an efficiency of up to 91%, and can discharge with up to 2.4A at a 92% boost conversion efficiency. Featuring a Type-C interface, it allows for simultaneous charging and 5V output with power-path management. The module includes multiple protection mechanisms such as over-current, over-voltage, short-circuit, and thermal shutdown for safe and reliable operation.
Specifications of IP5306 Lithium Battery Boost Charging Module
-
Charging Efficiency: Up to 91%, with a current of 2.1A
-
Discharging Efficiency: Up to 92%, with a current of 2.4A
-
Boost Converter: 5V
-
Input/Output Protection: Over-current, over-voltage, short-circuit, thermal shutdown
-
Fuel Gauge: Voltage-based, with 4 LED indicators
-
Standby Current: Less than 100uA
-
Interface: Type-C
Datasheet of IP5306 Lithium Battery Boost Charging Module
