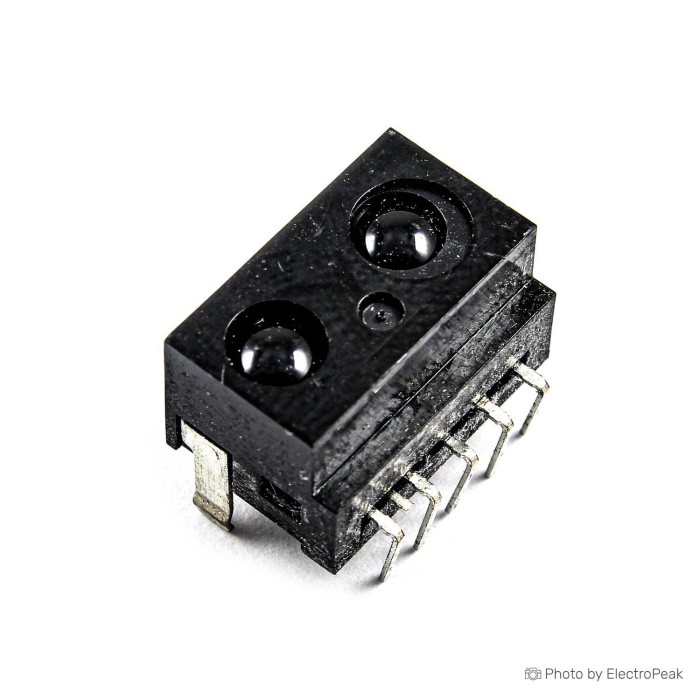

GP2Y0D310K Digital Distance Sensor

$0.0000
Out of stock
SKU
SEN-05-015
Shop with confidence Learn More
20-Key 38KHz Infrared Remote Control - 8m Range Previous 20-Key 38KHz Infrared Remote Control - 8m Range

Description
GP2Y0D310K0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IRED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. The output voltage of this sensor stays high in case an object exists in the specified distance range. So this sensor can also be used as proximity sensor

Features
Digital output type
Detecting distance : Typ. 100 mm
Consumption current : Typ. 31 mA
Supply voltage : 4.5 to 5.5 V
High-speed measurement cycle : 8 ms
Operating Temperature: -10+60C
