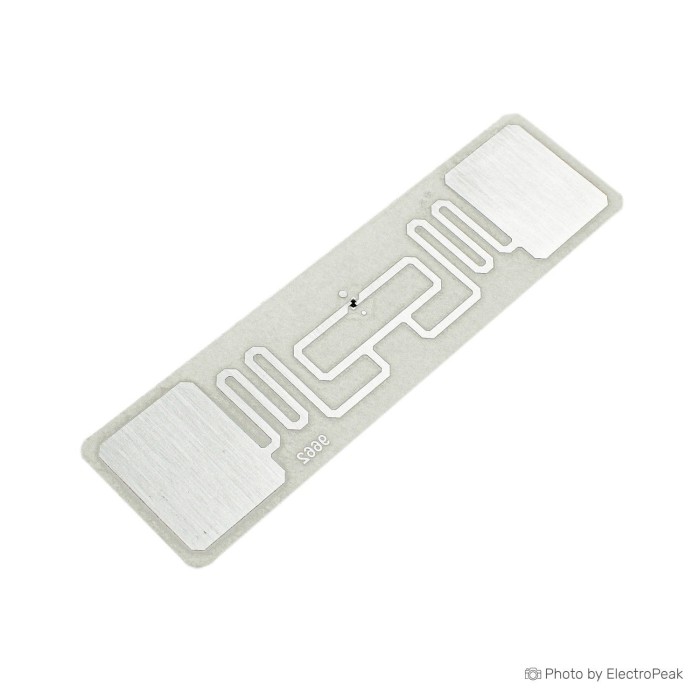

UHF RFID Tag 20mmx70mm

UHF RFID Tag 20mmx70mm is a passive RFID adhesive label designed for UHF operation in the 860MHz ~ 960MHz band. It uses aluminum etching antenna technology and a PET base material. The tag is available in a transparent form, with only the silver-colored area visible. It supports multiple chip options and standard RFID protocols for UHF identification applications. The label size is 70mm x 20mm.

Features of UHF RFID Tag 20mmx70mm

• Passive RFID adhesive label
• UHF frequency band support
• Transparent label body
• Aluminum etching antenna technology
• PET base material
• Multiple chip options

Specifications of UHF RFID Tag 20mmx70mm

• Antena technology: aluminum etching
• Bed material: PET
• Antenna thickness: 0.01mm
• Layer thickness: 0.03mm
• Frequency: 860MHz ~ 960MHz
• Readable distance: 1 ~ 10 M
• Standard protocol: ISO / IEC 18000-6C; EPC CLASS1 G2
• IC: NXP-XM/XL/HSL; Alien-H2/H3; Impinj-M2/M3
• Storage: 0 bits / 96 bits / 512 bits / 2048 bits
• Number of times to write information per tag: 10000 times (HSL: 100,000)
• Data storage: 10 years
• Baud rate: 640K bits / s (HSL: 40K bits / s)
• Size: 70mm x 20mm

How to Use UHF RFID Tag 20mmx70mm

1. Attach the adhesive RFID label to the desired surface.
2. Use a compatible UHF RFID system within the supported frequency band.

More Info

• The label is transparent, with only the silver-colored area visible.
• The product is a 70x20mm RFID adhesive tag.
