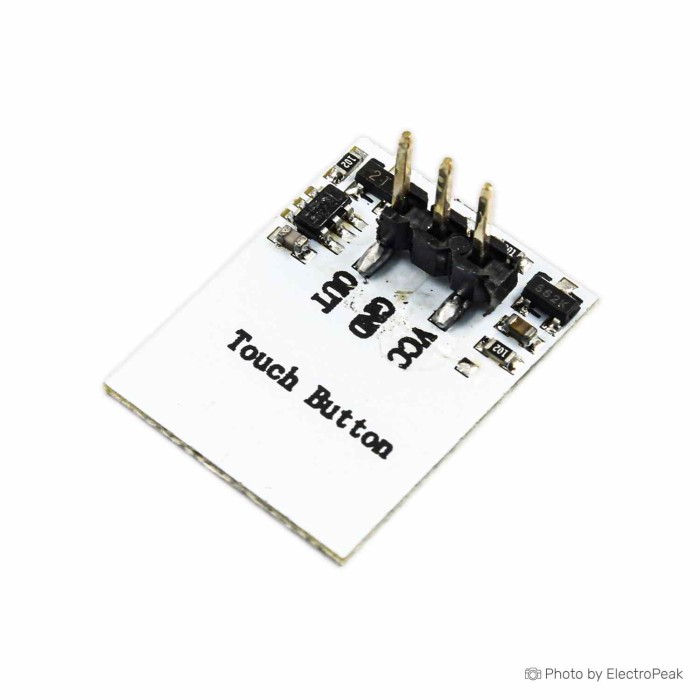

HTTM Series Capacitive Touch Switch Button Module
SAVE
As low as $0.5500
In stock
Only %1 left
SKU
SEN-25-021
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HTTM Series Capacitive Touch Switch Button Module is a capacitive touch module with switch-style operation. It supports touch input through an insulating layer such as glass or thin plastic. The module works in toggle mode, where the output goes HIGH on touch and remains HIGH until the next touch. It is designed for touch switch, touch player, vehicle equipment, and touch display applications. The module uses a low-power design with a wide input voltage range and a 3.3V output signal.
Features of HTTM Series Capacitive Touch Switch Button Module
- Toggle mode operation
- Capacitive touch sensing
- Through-glass and plastic sensing
- Low-power operation
- Anti-interference algorithm
- Selectable backlight colors
Specifications of HTTM Series Capacitive Touch Switch Button Module
- Working mode: Switch
- Input voltage: 2.7V - 6V
- Output voltage: 3.3V
- Working current: 13uA Max
- Backlight: Yellow/Blue/Red/Green (optional)
- Dimensions: 16x16mm
- Operating voltage: + 2.7 ~ 6V
- Working temperature: 30 ~ + 70 Celsius
- OUT pin output voltage: + 3.3V ± 0.1V
- OUT pin maximum output current: 500mA
How to Use HTTM Series Capacitive Touch Switch Button Module
- Apply power within the 2.7V - 6V range.
- Connect the output signal to the target circuit.
- Place the sensing area behind an insulating layer if needed.
- Touch the sensing area to toggle the output state.
More Info
- No mechanical components.
- Suitable for sealed front-panel designs.
- The output can be configured as latched output or keep output.
| Operating Voltage (V) | 2.7V - 6V |
|---|---|
| Operating Current (mA) | 13uA Max |
| Dimensions (mm) | 16x16mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Digital |
| Sensing Method | Capacitive |
| Channels | 1-channel |
| Sensor Model | HTTM |
| Signal Indicator | Signal output indicator |
