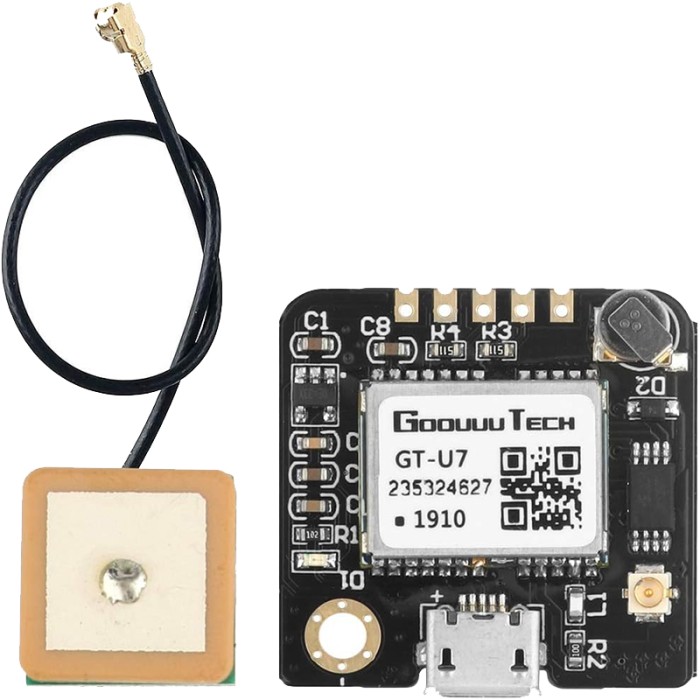

Goouuu Tech GT-U7 GPS Module
$7.2500
In stock
SKU
SEN-15-021
Volume discounts:
- +25 4 % $6.9700
- +50 6 % $6.8300
- +100 8 % $6.6800
- +300 10 % $6.5400
- +500 12 % $6.4000
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
The Goouuu Tech GT-U7 GPS Module is a high-performance GPS receiver featuring the 7th generation chipset, ensuring compatibility with NEO-6M software. This module comes with a USB interface, allowing direct connection to a computer for easy positioning data viewing. It includes an IPEX antenna interface and is equipped with an active antenna for quick positioning. The GT-U7 is known for its high sensitivity and low power consumption, making it ideal for applications requiring precise and reliable positioning in various environments, including urban areas and dense forests.
Specifications of Goouuu Tech GT-U7 GPS Module
- Operation Voltage: 3.6V - 5V (or direct USB power supply)
- Operation Current: 30mA
- Dimensions: 74x51x12.7mm
- Weight: 5.7g (0.2 ounces)
- GPS Chipset: 7th generation (compatible with NEO-6M software)
- Antenna Interface: IPEX connector for GPRS/GPS/BT
- Communication Interface: micro USB and UART (TTL)
- Baud Rate: 9600 (modifiable)
- Positioning Accuracy: 1~2.5m
- Onboard Memory: E2PROM for saving parameter data
- Output Format: NMEA, compatible with NEO-6M
How to use of Goouuu Tech GT-U7 GPS Module
- Power Supply: Connect the module to a 3.6V - 5V power source or directly to a USB power supply.
- USB Connection: Use a USB data cable to connect the module to a computer for direct viewing of positioning data.
- Antenna Connection: Attach the provided active antenna to the IPEX antenna interface for enhanced signal reception.
- Initialization: Power on the module and allow it to acquire satellite signals. The module will start positioning automatically.
- Data Acquisition: Use serial communication software on the computer or a microcontroller to read the NMEA output data from the module.
- Configuration: Modify settings such as the baud rate using appropriate commands if necessary.
Datasheet of Goouuu Tech GT-U7 GPS Module
