DFRobot DFPlayer PRO DF1201S MP3 Player Module
$14.5000
In stock
SKU
MOD-04-021
Volume discounts:
- +25 4 % $13.9300
- +50 6 % $13.6500
- +100 8 % $13.3600
- +300 10 % $13.0800
- +500 12 % $12.7900
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
5W TWS Bluetooth Amplifier mono board with Type C
Previous

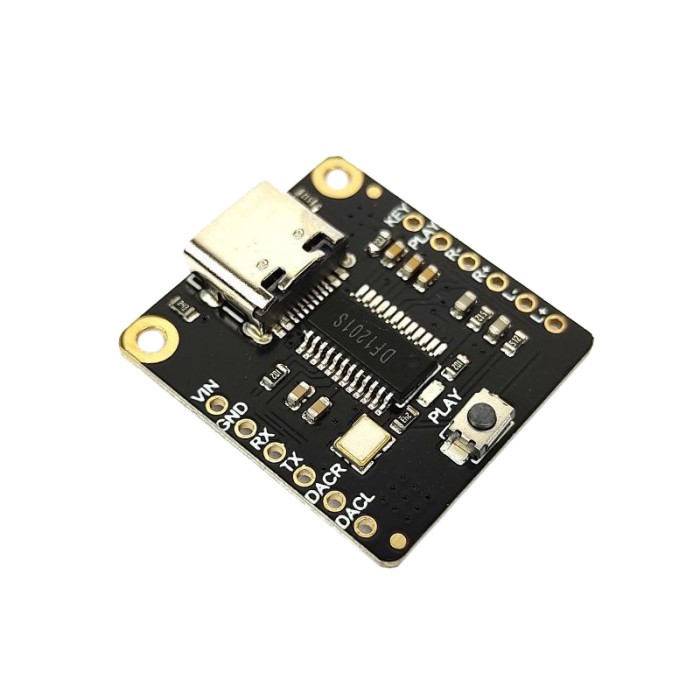

The DFRobot DFPlayer PRO DF1201S is a compact, yet powerful MP3 player module designed for various audio playback applications. It supports four control modes: Arduino, AT command, on-board buttons, and ADKEY, offering flexibility in how you manage your audio. The module comes with 128MB of onboard high-speed storage, eliminating the need for a TF card. Additionally, the DFPlayer PRO features dual-channel 3W power amplification, enhanced sound effects, and new functionalities such as fast-forward, fast-rewind, and specific point playback. The on-board Type-C socket allows easy file transfers and the module can also function as a sound card for a PC or Raspberry Pi.
Specifications of DFRobot DFPlayer PRO DF1201S MP3 Player Module
-
Power Supply: 3.3V~5V
-
Operating Current: >20mA
-
Storage: 128MB onboard high-speed storage
-
Audio Formats Supported: MP3, WAV, WMA, FLAC, AAC, APE
-
Communication Interface: UART
-
Operating Temperature: -20℃~70℃
-
Operating Humidity: 5%RH~95%RH
-
Dimensions: 23 x 24.5 mm
How to Use the DFRobot DFPlayer PRO DF1201S MP3 Player Module
-
Control Modes:
-
On-board Buttons: Directly press to play, pause, or switch tracks.
-
Arduino/AT Command: Integrate with Arduino or send AT commands for advanced control.
-
ADKEY: Use ADKEY for analog control of playback functions.
-
USB Type-C: Connect to a PC or Raspberry Pi to transfer files or use as a sound card.
-
-
Playback Features:
-
Supports fast-forward, fast-rewind, and playback from a specific point in the audio file.
-
More Information about DFRobot DFPlayer PRO DF1201S MP3 Player Module
Wiki Webpage of DFRobot DFPlayer PRO DF1201S MP3 Player Module
