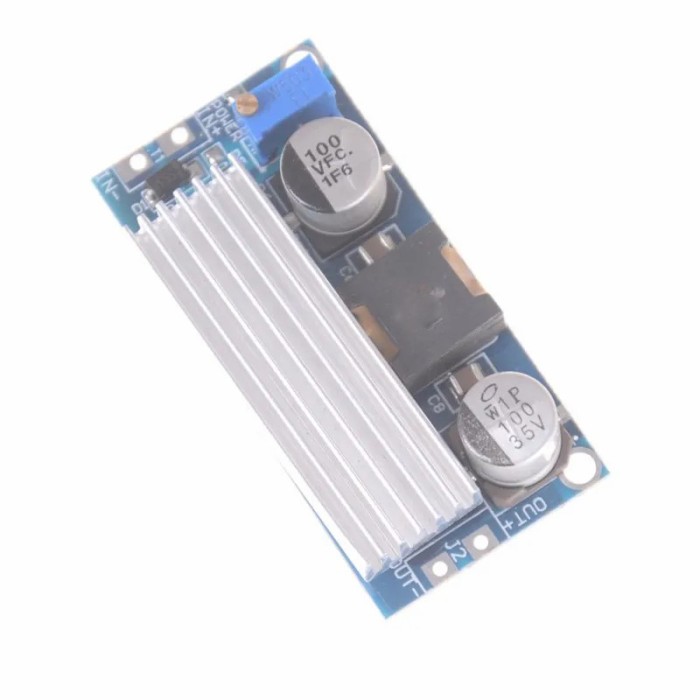

DC-DC Step-Up Regulator Module - 100W, 6A
$2.9500
In stock
SKU
BAT-02-174
Volume discounts:
- +25 4 % $2.8300
- +100 6 % $2.7700
- +300 8 % $2.7000
- +500 11 % $2.6400
- +1000 13 % $2.5800
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Mini DC-DC Buck Converter 7V-16V
Previous
The DC-DC Step-Up Regulator Module - 100W, 6A is a powerful and efficient boost converter designed to increase the voltage of your DC power supply. With an input voltage range of 4-30V and an output range of 3.5-35V, this module can handle a wide variety of applications, providing a maximum output current of 6A and power output up to 128W. It features high conversion efficiency and short circuit protection, making it a reliable choice for various electronic projects and power supply needs.
Specifications of DC-DC Step-Up Regulator Module - 100W, 6A
- Input Voltage: DC 4-30V
- Input Current: 9A (max)
- Output Voltage: DC 3.5-35V (output voltage >= input voltage)
- Output Current: 6A (max)
- Output Power:
- 75W (typical)
- Up to 128W (when input and output voltage > 20V)
- Conversion Efficiency: Up to 96.7% (highest)
- Output Ripple: 24mV (TYP)
- Voltage Error: ±0.1V
- Short Circuit Protection: Yes (current limit: 14A)
- Input Reverse Protection: No (requires external large current diode if needed)
- Dimensions: 57 x 28 mm
