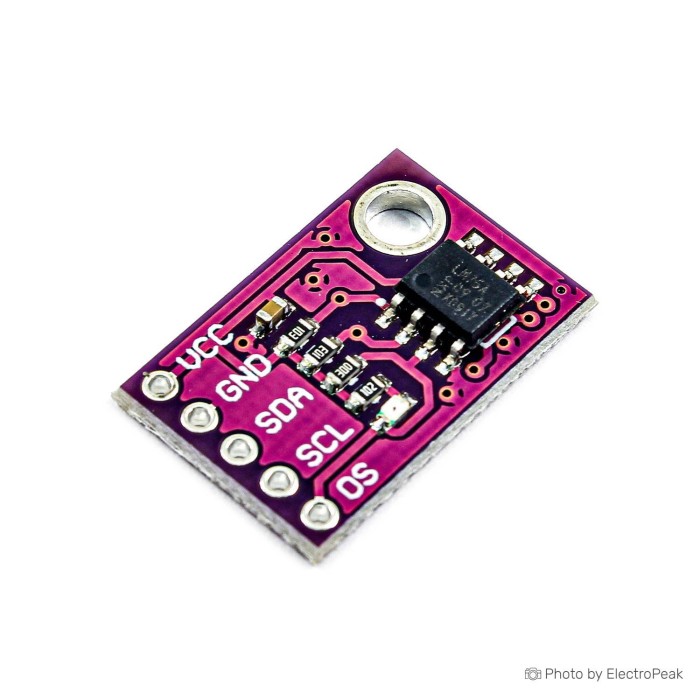

CJMCU LM75 Temperature Sensor Module - I2C Interface
$0.7000
In stock
SKU
SEN-10-040
Volume discounts:
- +100 6 % $0.6600
- +300 7 % $0.6500
- +500 10 % $0.6300
- +1000 11 % $0.6200
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
MLX90614ESF-BCC IR Temprature Sensor
Previous
Description
The LM75A or B is a high-speed I2C interface temperature sensor that converts temperature directly to digital signals from -55°C to +125°C and achieves an accuracy of 0.125°C. The MCU can directly read the data in its internal registers through the I2C bus, and can operate four data registers through I2C to set different operating modes. The LM75A has three selectable logic address pins that allow eight devices to be connected simultaneously on the same bus without address conflicts.
Features
The 11-bit ADC provides a temperature resolution of 0.125 ° C
The device can be used as a stand-alone temperature controller at power-up
I2CBus Interface, The device address7A slave address1001xxx, It can be expanded on the same bus8A device
Power Supply Range: 2.8V ~ 5.5V,
Temperature Range: -55 „ ~ 125 „
Temperature Accuracy:
± 2 „ (-25 „ ~ 100 „)
± 3 „ (-55 „ ~ 125 „)
Programmable temperature threshold and lag set point
To reduce power consumption, The current consumed in shutdown mode is only1.0μA
The device can be used as an independent thermostat when turned on
