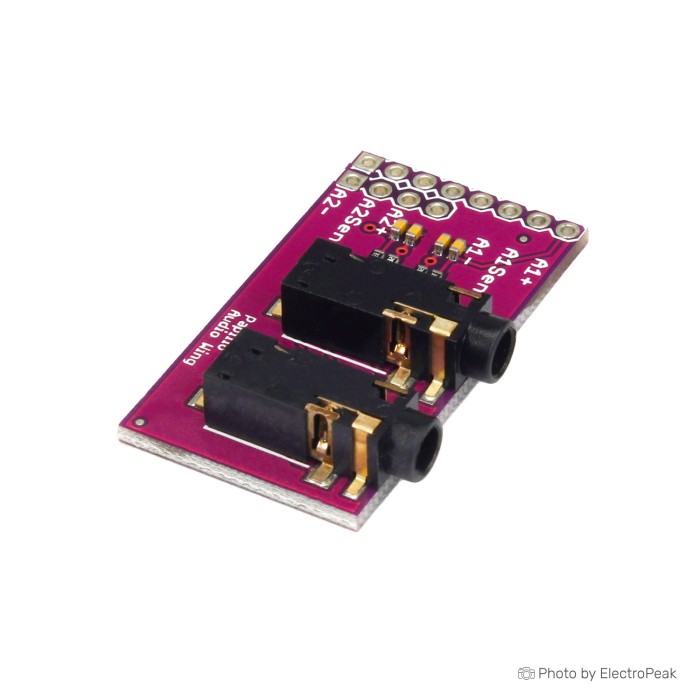

CJMCU 3.5mm Dual Channel MP3 Stereo Headphone Jack Module
$0.6200
In stock
SKU
MISC-04-004
Volume discounts:
- +50 3 % $0.6000
- +100 6 % $0.5800
- +300 8 % $0.5700
- +500 10 % $0.5600
- +1000 11 % $0.5500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PS2 Mouse and Keyboard Socket Adapter Module- Pack of 2 Previous
CJMCU 3.5mm Dual Channel MP3 Stereo Headphone Jack Module is a stereo audio interface module for electronics projects. It provides two stereo channels for left and right audio output and supports simultaneous headphone and microphone connection. The module includes a low-pass RC filter for improved audio output quality. A connection sensor pin is available for detecting when speakers are connected. It operates across a 3.3V to 5V range and uses two 3.5mm stereo jacks.
Features of CJMCU 3.5mm Dual Channel MP3 Stereo Headphone Jack Module
- Dual stereo channels
- Left and right outputs
- Two 3.5mm stereo jacks
- Delta-Sigma stereo output
- Low-pass RC filter
- Speaker connection sensor pin
Specifications of CJMCU 3.5mm Dual Channel MP3 Stereo Headphone Jack Module
- Module type: 3.5mm stereo headphone and microphone jack module
- Channels: two stereo channels
- Ports: two 3.5mm stereo jacks
- Output: Delta-Sigma
- Filter: low-pass filter
- Sensor pin: connection sensor pin
- Operating voltage: 3.3V to 5V
- Dimensions: 28x22mm
How to Use CJMCU 3.5mm Dual Channel MP3 Stereo Headphone Jack Module
- Connect the module to your audio circuit.
- Use the stereo jacks for headphone and microphone connections.
- Check the sensor pin if speaker detection is required.
More Info
- Designed for stereo audio interface applications.
- Suitable for electronics projects with 3.5mm audio connections.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3.3V - 5V |
| Dimensions (mm) | 28x22mm |
| Mounting Type | Pin Header |
| Function | Adapter Board |
| Output Type | Analog |
| Channel Count | 2 |
