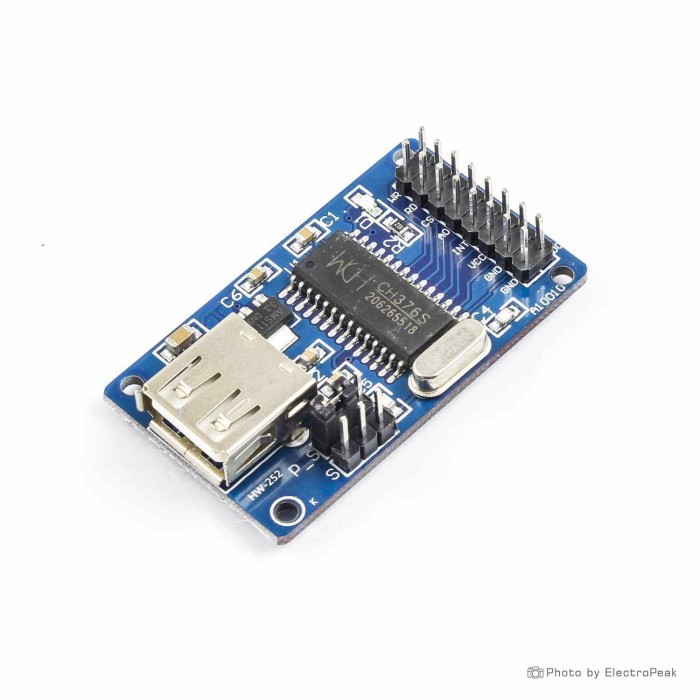

CH376S Read-Write USB Host Interface Communication Module
$2.5000
In stock
SKU
misc-04-042
Volume discounts:
- +100 6 % $2.3600
- +300 8 % $2.3100
- +500 10 % $2.2600
- +1000 11 % $2.2200
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Description:
CH375S is a USB bus universal interface chip, supports USB-HOST Mode and USB-DEVICE/SLAVE Mode. There are 8-bit data bus and read, write, chip select control wire and interrupt output in CH375.It is convenient to link CH375S to control system bus of MCU/DSP/MPU.CH375S also provides serial communication in USB-HOST mode. It connects with DSP/MCU/MPU through serial input, output and interrupt output.
Features:
- 2×8 connector, can be easily mounted with the MCU
- According jumper selectable, can work in parallel or serial mode
- USB status indicator
- Onboard 3.3V LDO 1117, provides 800mA maximum current
- 5V power supply from the target board
- 12MHZ crystal
