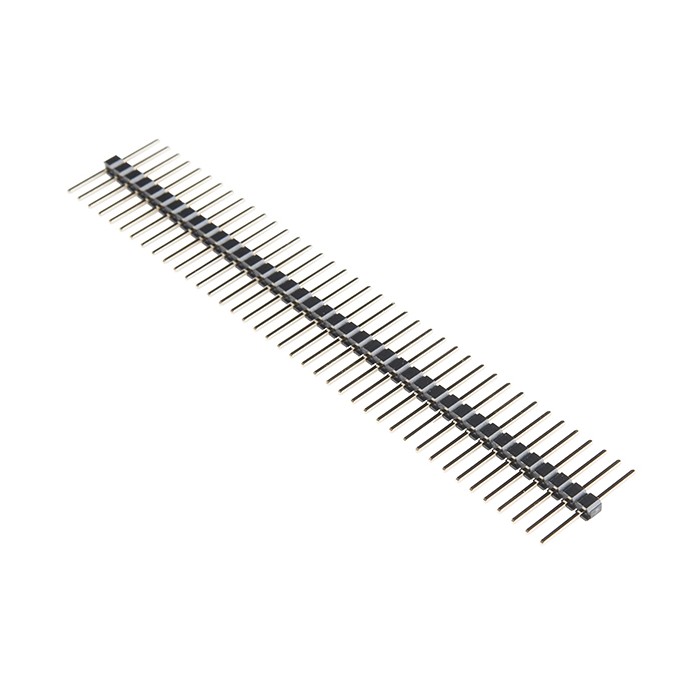

1x40 Pin Male Long Centered Header - 2.54mm Pitch
$0.1000
In stock
SKU
CAB-01-209
Volume discounts:
- +100 4 % $0.0957
- +500 7 % $0.0935
- +1000 9 % $0.0913
- +5000 11 % $0.0892
- +10000 13 % $0.0870
1x40 Pin Male Long Centered Header - 2.54mm Pitch is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
2x20 Pin Male Header - 2.54mm Pitch
Previous
A pin header (often abbreviated as PH, or simply header) is a form of electrical connector. Pin headers are often associated with ribbon cable connectors, pin headers often also function as recipients for jumpers. Pin header connectors are thus "male" connectors ("female" counterparts do exist, but these are normally just called female header (FH) or header connector, without "pin") and are mostly used inside equipment, rather than being used as a connector on the outside of the device.
Specification
- Color classification: 1*40P
- 2.54mm
- Plastic body height: 8.5mm
- Pin length: 6.25mm each side (Total 15mm)
- Contact: copper alloy
- Operating temperature: -55+105 degrees
- Dielectric withstand voltage: AC550V
- Insulation resistance: 5,000MO
- Rated current: 3Amps
