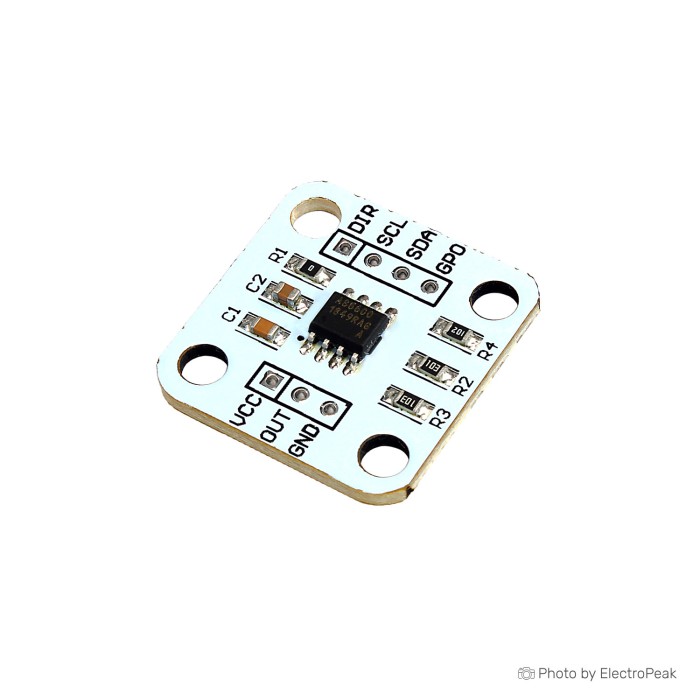

AS5600 12Bit Magnetic Encoder Induction Angle Measurement Sensor Module

Introducing the AS5600 12Bit Magnetic Encoder Induction Angle Measurement Sensor Module, a game-changing device for precise angle measurement in various applications. This sensor module utilizes advanced magnetic encoding technology to provide accurate and reliable angle measurements, making it an essential tool for robotics, automation, and motion control systems. With its user-friendly interface and high-resolution output, the AS5600 12Bit Magnetic Encoder Induction Angle Measurement Sensor Module allows you to achieve precise and repeatable angle measurements with ease.

Equipped with impressive specifications, the AS5600 12Bit Magnetic Encoder Induction Angle Measurement Sensor Module stands out from the crowd. It offers a 12-bit resolution, providing a high level of precision in angle measurement. With a wide operating voltage range of 3.3V to 5V, this module ensures compatibility with various power sources. Additionally, it features a programmable I2C interface, allowing for easy integration into your existing systems. Whether you're working on robotics, motor control, or position sensing applications, the AS5600 12Bit Magnetic Encoder Induction Angle Measurement Sensor Module is the perfect choice for accurate and reliable angle measurement.

Features of AS5600 12Bit Magnetic Encoder Induction Angle Measurement:

• Non-contact magnetic induction angle measurement module.
• High precision, a variety of output modes : IIC, PWM And voltage.
• High-quality AS5600 modules made of high-quality materials are durable and not easily damaged.
• Wide support, perfect match.
• You will get an AS5600 magnetic encoder module, a 7pin pin header, and a small magnet.
• Size：23.3×22.8 mm

Electrical parameters:

• VCC: 3.3V
• GND: Power Ground
• Out: PWM /Analog voltage output
• DIR: Rotational direction (ground=Value increases clockwise; then VCC =Clockwise values are decreased)
• SCL: IIC The communication clock line
• SDA: IIC Data communication line
• GPO: Mode selection (internal pull ground=Programming mode B)
