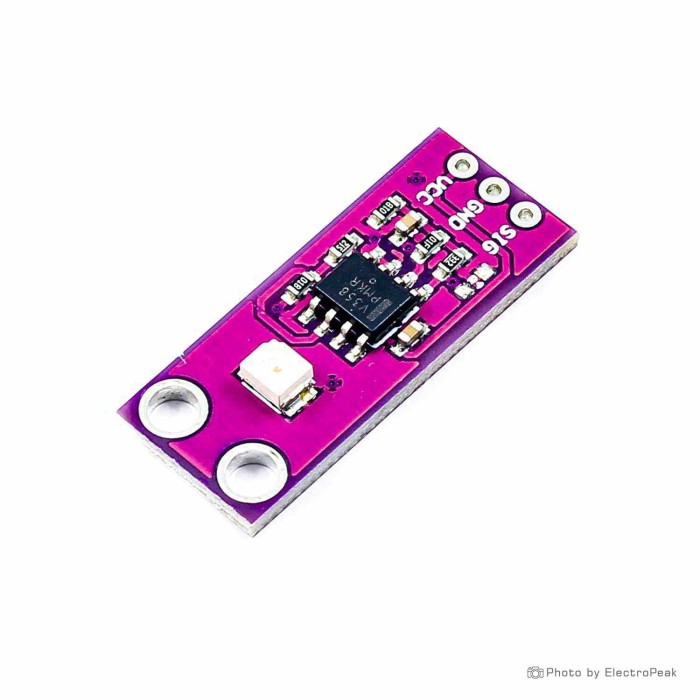

GUVA-S12SD UV Analog Sensor Module
$1.5000
In stock
SKU
SEN-11-045
Volume discounts:
- +100 7 % $1.4000
- +300 9 % $1.3700
- +500 11 % $1.3300
- +1000 13 % $1.3000
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
PR5528 Photocell
Previous
Description
This module based on GUVA-S12SD that is suitable for detecting the UV radiation in sunlight. It can be used in any application where you want a monitor for the amount of UV light and is simple to connect to any microcontroller. It can be used in any application where you want to monitor for the amount of UV light and is simple to connect to any microcontroller. It uses a UV photodiode, which can detect the 240-370nm range of light (which covers UVB and most of the UVA spectrum). The signal level from the photodiode is very small, in the nano-ampere level, so we tossed on an opamp to amplify the signal to a more manageable volt-level. Its output is a calibrated analog voltage which varies with the UV light intensity so basically all you need to do is connect this to an ADC input and read in the value.
Features
Chip:Â UVA-S12SD
Output Type: Analog
Input Voltage: 3.3V ~ 5.5V
Measuring Range: 0 ~ 10 UVI
Wavelength: 240nm ~ 370nm
Detection Angle: 130°
Pin Number: 3 Pins
Operating Temperature: -30°C ~ +85°C
Storage Temperature: -40°C ~ +90°C
Size: 11mm x 27mm
Connection:
1. GND: 0V (Ground)
2. VCC: 3.3V ~ 5.5V
3. OUT: 0V ~ 1V ( 0 to 10 UV Index)
Application:
UV tester, UV watches, outdoor sports equipment, mobile phone, etc
You can use this product, especially the world only in the field of mobile phone specifications.
