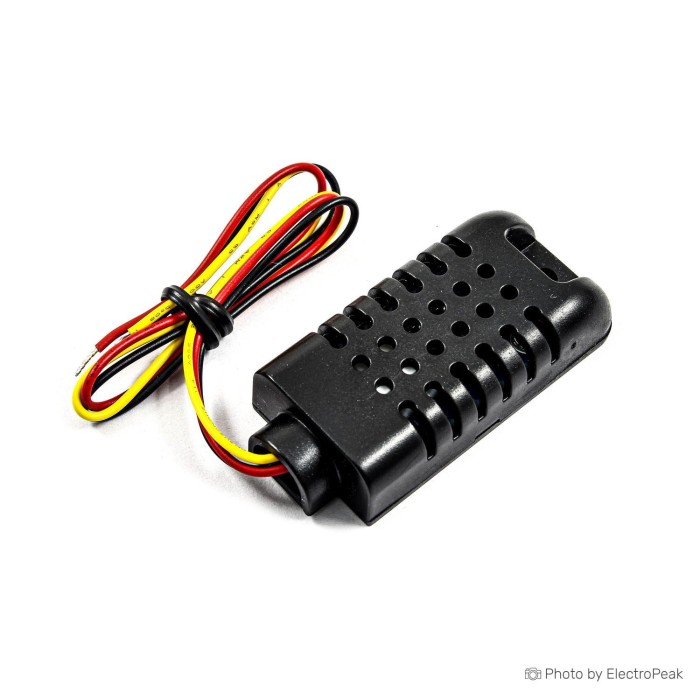

ASAIR DHT21/AM2301 Temperature Humidity Sensor
$5.5000
In stock
SKU
SEN-10-018
Volume discounts:
- +25 4 % $5.2800
- +50 6 % $5.1700
- +100 8 % $5.0600
- +300 10 % $4.9500
- +500 12 % $4.8400
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
YL-69 Soil Moisture Detection Sensor Module
Previous
Description:
AM2103 Capacitive Digital Humidity And Temperature Sensor is a new high precision single bus temperature and humidity detector, which is based on AM2103 humidity capacitive digital temperature and humidity sensor chip. The AM2103 chip is a high quality, fast response, anti-interference, but a little expensive chip. This sensor is composed of a capacitive humid sensor to detect humidity in a wide range from zero up to 100% and a high precision temperature sensor in climate range from -40„ up to +80„, which is connected to a high-performance 8-bit microcontroller. The humid and temperature sensor is calibrated in the clean room (laboratory), then calculates calibration coefficients and stored in the microcontroller program, to call it while sensing and during signal processing.
This sensor module is ultra-low power consumption, small size, and full auto calibration, which make it very suitable for portable applications. It can transmit the data to long distances up to 20 meters, thus is suitable for the industrial control from far away process. It is easily and completely interchangeable, so repairing process is simple and easy. It supports standard digital single bus output with long period stability. This module can be used in test and measurement tools and devices, HVAC equipment, dehumidifier, inspection equipment, consumer goods, automatic control, data loggers, home appliances, humidity regulator, medical projects,  weather stations, and other humidity measurement and control and so on. Â
Features
Model: AM2301
Input Voltage : 3.5V ~Â 5.5VÂ
Measuring current : 1mA ~ 1.5mAÂ
Humidity range : 0-100% RH
Temperature range: -40 „ ~ +80 „
Humidity accuracy : ± 2% RH
Temperature accuracy : ± 0.5 „
Wire length: 25cm
Size: 59mm x 27mm x 13mm
