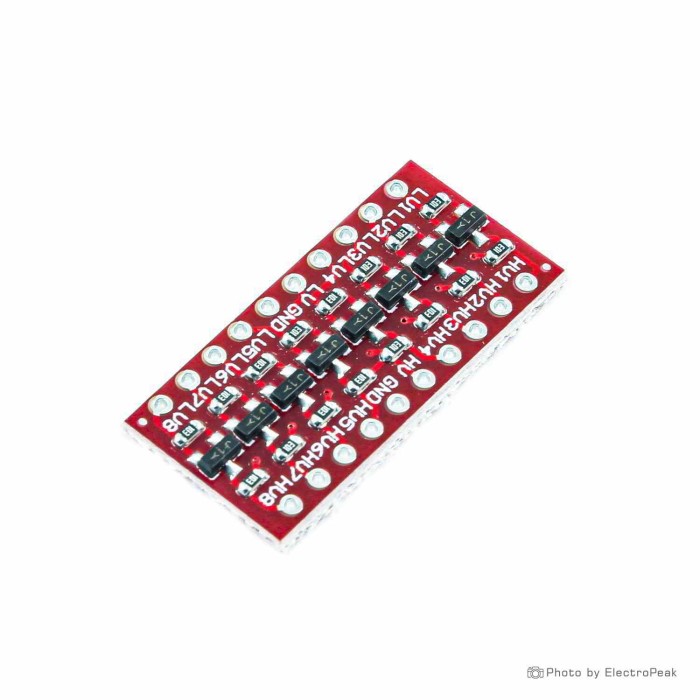

8-Channel Bi-Directional I2C Logic Level Converter Module
$0.5500
In stock
SKU
COM-05-072
Volume discounts:
- +100 5 % $0.5200
- +300 7 % $0.5100
- +500 9 % $0.5000
- +1000 11 % $0.4900
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Voltage to PWM Converter Module - 0-10V to 0-100%
Previous
If you've ever tried to connect a 3.3V device to a 5V system, you know what a challenge can be. A bidirectional logic level translator is a small device that safely steps down a 5V signal to 3.3V while boosting 3.3V to 5V. This level shifter is also available for 2.8V and 1.8V devices. What sets this logic level translator apart from our previous versions is that you can successfully set high and low voltages and safely raise and lower them on the same channel. Each level shifter has the ability to convert 4 pins on the high side to 4 pins on the low side, with two inputs and two outputs for each side
Level shifters are very easy to use. The board needs to be powered by the two voltage sources (high voltage and low voltage) used by the system. High voltage (eg 5V) to "HV" pin, low voltage (eg 3.3V) to "LV", ground from system to "GND" pin
Specificatoins of 8-Channel Bi-Directional I2C Logic Level Converter Module:
- Pin Definition:
- Compatible with 5-3V systems
- VIN is connected to 5V system power supply
- 5A to 5V system
- 5B is connected to 5V system
- GND connects to 5V system GND
- 3V3 connects to 3V system power supply
- 3A connection to 3V system
- 3B connection to 3V system
- GND connects to 3V system GND
- Dimensions: 28x19mm / 1.1x0.74 inches
