LED Traffic Light Module - 5V
$0.2400
In stock
SKU
ELC-02-105
Volume discounts:
- +100 4 % $0.2310
- +500 6 % $0.2260
- +1000 8 % $0.2220
- +5000 10 % $0.2170
- +10000 11 % $0.2130
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
WS2812B 16-Bit RGB LED Square Module
Previous

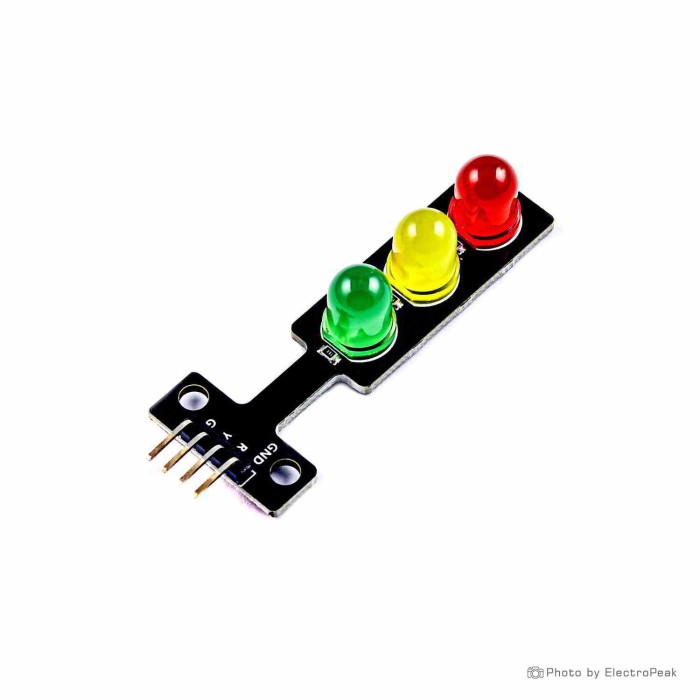

LED Traffic Light Module package contains 10 pieces of a three-color LED with a common cathode, which is sequentially driven to act as a traffic light. So it is made of yellow, red, and green color LED with high brightness, which is suitable to simulate or model the traffic light situations. This traffic light is an ultra-low size, low power consumption, simple wiring, and easy installation.
This module can be supplied with 5V DC, and communicate with microcontroller and Arduino boards through the 4 pins serial interface. This traffic light can be driven with a PWM driver to drive and control the light and brightness of the LEDs.
Specificatoins of LED Traffic Light Module - 5V:
- Color: red yellow green
- LED: 5mm x 3mm
- Voltage: 5V
- Type: common cathode, red, yellow and green separate control
- Pin number: 4 Pin
- Size: 56mm x 21mm x 11mm
