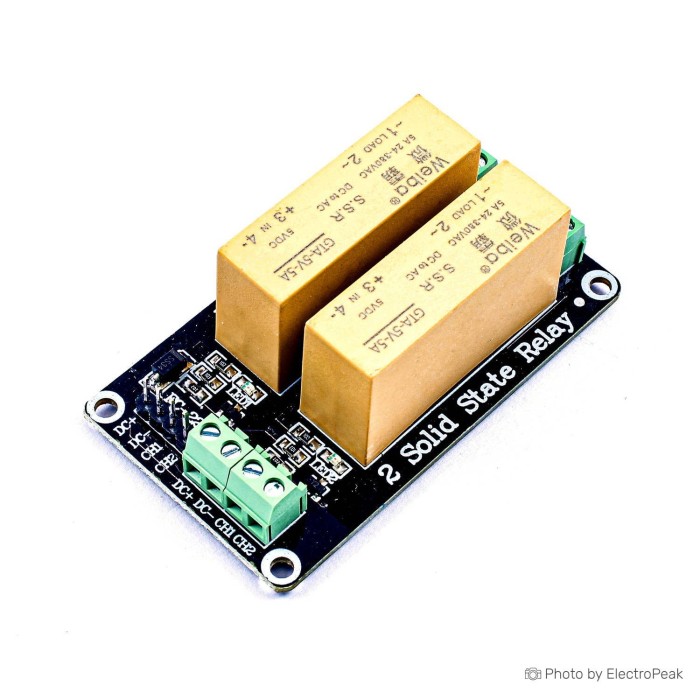

2-Channel SSR Solid-State Relay Module - 5V
$8.9500
In stock
SKU
REL-01-025
Volume discounts:
- +25 4 % $8.5600
- +50 6 % $8.3700
- +100 9 % $8.1700
- +300 11 % $7.9800
- +500 13 % $7.7900
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
4-Channel SSR Solid State Relay Module - 5V
Previous
SSR-GJ series for small high-power solid-state relays, input control voltage is 3~5V DC, output adopts a unidirectional thyristor reverse parallel, dv/dt resistant ability is high, the output load voltage range of 5~220V DC. Great to meet customers various requirements in different places.
SSR-GJ series of solid state relay is widely used in electric furnace temperature control, rubber and plastics machinery, printing machinery, packaging machinery, fountain control, CNC machine, stage lighting, and another industrial automation field.
Specifications:
- 100% brand new and high quality
- High-quality solid-state relay module, maximum load: AC 240V / 2A.
- High-level control module
- Solid state relay 240V 2A, output with resistive fuse 240V 2A
- Trigger Mode: High-Level Trigger
- Voltage Supply: 5V/12V/24V Optional
- Channels: 1/2/4/8 Channel Optional
- The photoelectric isolation
- The 4000V dielectric withstanding voltage
- The zero or random conducting switch
- The PCB type installationThe SCR output
- Have extremely high surge current capability
- Built-in RC absorption circuit
- It can provide LED indicate the working state of products
- Environmental friendly ( in line with the ROHS requirements )
- Input ( control ) parameters ( TA=25?)
- Input voltage range: 3~5VDC
- Ensure that the turn-on voltage: 3VDC
- Ensure that the turn-off voltage: 1VDC
- Input current ( typical): 18Ma
- Input current ( max): 25mA
- Reverse polarity voltage ( DC ):-5VDC
- Output ( load ) parameters ( TA=2?)
- Output voltage range: 5~220VDC
- Maximum transient voltage: 800Vpk
- Maximum output current: 1Ma¢‚?/li>
- Maximum output voltage: 1.5Vrms;
- Maximum load current: 5A
- Maximum surge current (10ms ): Rated current of 20 times
- The minimum power factor: 0.5
- Minimum working current: 50MA
- High level action
- Low-level cut-off
- Control panel input: 3~5VDC
- Power supply input: 3~5VDC
- Size: 89x53x29;
- FR-4 Fiberglass PCB (Double Layer)
- PCB thickness: 1.6mm
