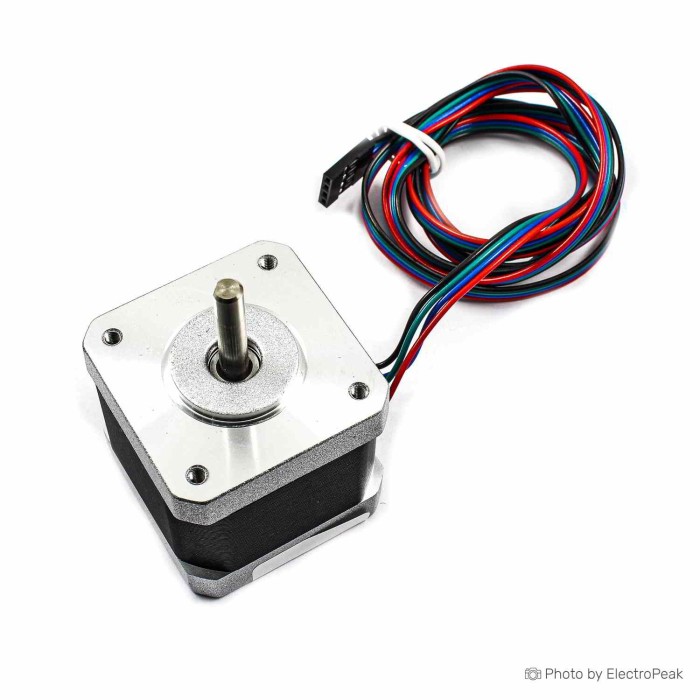

42BYGH40 2-Phase 4-Wire Stepper Motor for 3D Printers
$7.2500
In stock
SKU
MTR-05-011
Volume discounts:
- +25 6 % $6.8300
- +50 9 % $6.6200
- +100 12 % $6.4100
- +300 14 % $6.2000
- +500 17 % $5.9900
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
BYGH403 1.65A Stepper Motor for 3D Printers Previous
42BYGH40 2-Phase 4-Wire Stepper Motor is a stepper motor for precision motion control in electronics and robotics applications. It is a 2-phase motor with discrete stepping for accurate position control and speed control. This stepper motor is suitable for CNC systems, 3D printers, inkjet printers, scanners, plotters, floppy drives, DVD drives, and some digital camera lenses. It uses an XH connector on the wire end. The motor is built for applications that require exact angle or position control.
Features of 42BYGH40 2-Phase 4-Wire Stepper Motor - 40mm, 1.8°
- 2-phase stepper motor
- 4-wire connection
- Discrete stepping motion
- Precision position control
- XH wire-end connector
Specifications of 42BYGH40 2-Phase 4-Wire Stepper Motor - 40mm, 1.8°
- Model: 42BYGH40
- Body length: 40MM
- Holding torque: 0.45N.m
- Rated current per phase: 1.68A
- Phase resistance: 1.65 Ω
- Shaft diameter: 5mm
- Shaft length: 23mm
- Phase inductance: 3.2mH
- Rated voltage: 12V DC
- Winding resistance: 2±10% Ω/PHASE
- Winding inductance: 2±20% mH/PHASE
- Step angle: 1.8°
- Step accuracy: ±5% (full step, no load)
- Total inertia: 3.5kg.m.m
- Maximum body temperature: 80°C
- Ambient temperature: -20°C~+50°C
- Weight: 280 grams
- Dimensions: 40.1x40.1 mm
- Life: 6000 hours
How to Use 42BYGH40 2-Phase 4-Wire Stepper Motor - 40mm, 1.8°
- Connect the motor using the XH wire-end connector.
- Apply power according to the rated electrical specifications.
- Drive the motor with step control for position or speed operation.
More Info
- Suitable for precise angle and position applications.
- Designed as a simple 2-phase hybrid stepper motor.
| Weight (g) | 280 |
|---|
