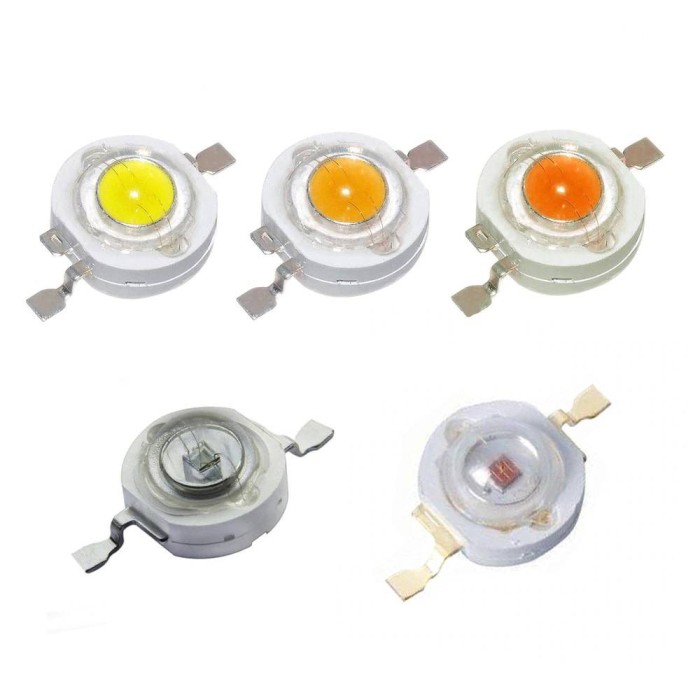

High Power LED - White, 1W

High Power White LED is a 1W white LED designed for bright illumination in lighting projects and electronic builds. It offers high-intensity light output and can be used with a suitable lens to improve light quality and focus. For safe operation and heat management, it should be mounted on a heatsink. The LED is suitable for professional lighting, outdoor illumination, building lighting, and floodlight-style applications.

Features of High Power White LED - 1W, 3V-3.6V DC

• High-intensity brightness
• Suitable for use with a lens
• Heatsink mounting required
• White light output

Specifications of High Power White LED - 1W, 3V-3.6V DC

• Input Voltage: 3V to 3.6V DC
• Lighting Angle: 120 degrees
• Lifespan: 50,000 hours
• Color: White
• Wattage: 1W
• Current: 350MA(max)
• Emitted color: white
• Color temperature: 6000K - 6500K
• Luminous flus: 110-120LM

How to Use High Power White LED - 1W, 3V-3.6V DC

1. Connect the LED within the specified input voltage range.
2. Mount it on a heatsink for thermal protection.
3. Use a suitable lens if light focus or quality improvement is needed.

More Info

• Designed for lighting projects and electronics use.
• Suitable for bright white illumination.
