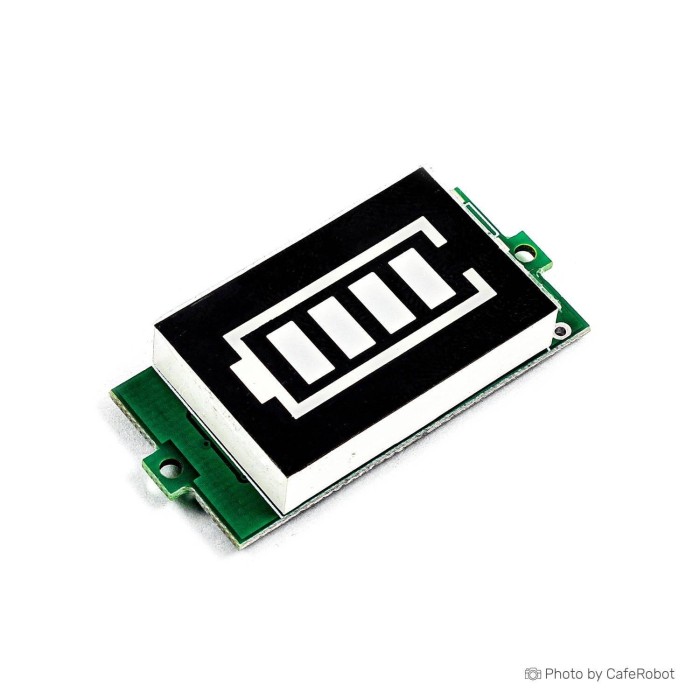

1-8 Cell Lithium Battery Level Indicator Module
$0.4700
In stock
SKU
ELC-16-032
Volume discounts:
- +100 4 % $0.4520
- +500 6 % $0.4430
- +1000 8 % $0.4340
- +5000 10 % $0.4250
- +10000 11 % $0.4160
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
TM1637 4-Digit 7-Segment Display Module
Previous
The 1-8 Cell Lithium Battery Level Indicator Module is a compact and practical device designed to monitor the voltage levels of lithium-ion or lithium-polymer batteries with cell counts ranging from 1 to 8 cells. This module provides visual indications of the battery's charge level, making it useful for applications where monitoring the battery status is crucial, such as remote-controlled vehicles, drones, portable devices, and power banks. The module offers an easy-to-read display of the battery's voltage, helping users make informed decisions about recharging or replacing the battery.
Specificatoins of 1-8 Cell Lithium Battery Level Indicator Module:
- Battery Compatibility: Lithium-ion (Li-ion) or lithium-polymer (LiPo) batteries with 1 to 8 cells
- Voltage Range: Typically compatible with batteries ranging from 3.3V to 28.8V (1S to 8S)
- Display: LED bar graph or segmented display indicating battery voltage levels
- Visual Indicators: Typically different colors or segments representing different voltage ranges
- Connection: Connects directly to the battery's balance connector or voltage tap points
- Form Factor: Compact module with voltage display and connections
- Number of cell Pre-set Setting: 1-cell.
- Battery Level Indicator Range: User configurable with jumper pad setting.
- Indicator Type: 4 Bar-graph.
- Display Color: Green/Blue.
- Dimensions: 45 x 20 x 8 mm (L x W x H).
- Mounting Hole: M2 Screw.
- Operating Temperature: -10„~65„.
- Weight: 5g.
Features of 1-8 Cell Lithium Battery Level Indicator Module:
- Caution:
- Before connecting the battery pack, make sure to solder the pad to the correct position
