ZS10010 Liquid Level Sensor - Float Switch
$3.5000
In stock
SKU
SEN-20-027
Volume discounts:
- +25 4 % $3.3500
- +100 6 % $3.2800
- +300 9 % $3.2000
- +500 11 % $3.1300
- +1000 13 % $3.0500
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Hi-Link LD8001H 80G Non-Contact Water Liquid Level Module
Previous

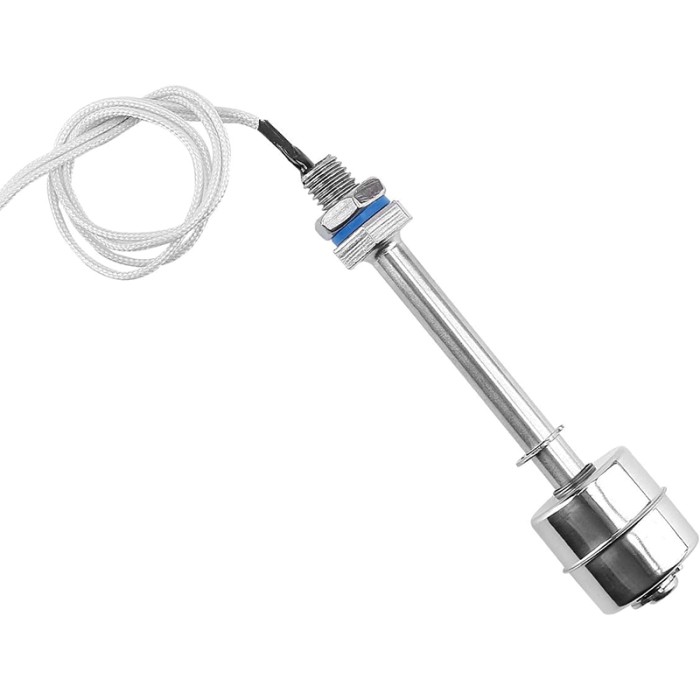

The ZS10010 Liquid Level Sensor - Float Switch is a high-quality, reliable device designed for monitoring and controlling liquid levels in tanks, containers, and other applications. Made from durable SUS304 stainless steel, this float switch ensures longevity and resistance to corrosion. It is ideal for both high and low-level detection in a wide range of liquids. With a maximum switching voltage of 100V DC and a maximum contact rating of 10W, the ZS10010 float switch is suitable for various industrial and household applications where accurate liquid level detection is needed.
Specifications of ZS10010 Liquid Level Sensor - Float Switch
-
Product Name: Floating Switch
-
Model No.: ZS10010
-
Max Contact Rating: 10W
-
Max Switching Voltage: 100V DC
-
Max Switching Current: 0.5A
-
Max Breakdown Voltage: 220V DC
-
Max Carry Current: 1A
-
Max Contact Resistance: 100mOhm
-
Max Temperature: -30°C to +120°C
-
Material: Stainless Steel, SUS304
-
Thread Diameter: 10mm
-
Thread Length: 15mm
-
Switch Total Length: 100mm
-
Color: Silver Tone
-
Dimensions: 100mm x 10mm (Switch Length x Thread Diameter)
Datasheet of ZS10010 Liquid Level Sensor - Float Switch
