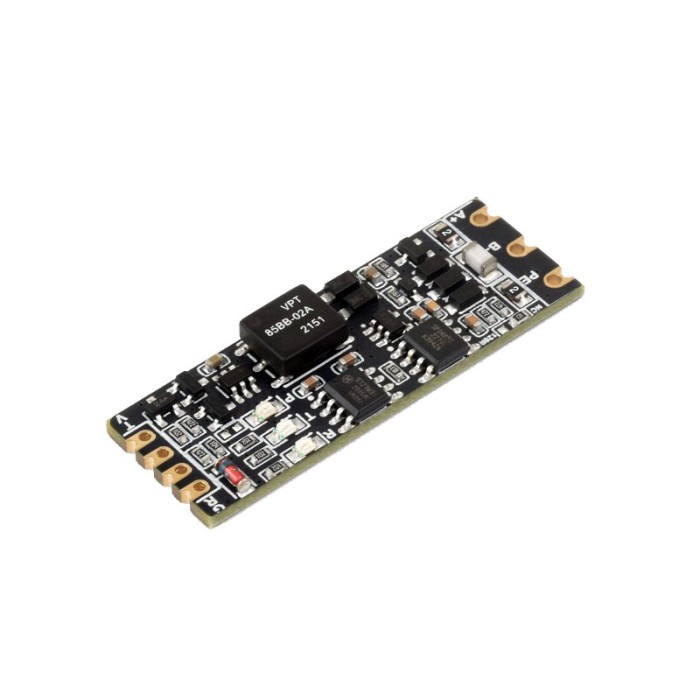

WaveShare TTL to RS485 (C) Galvanic Isolated Converter
$9.2500
In stock
SKU
MOD-10-013
Volume discounts:
- +25 4 % $8.8900
- +50 6 % $8.7100
- +100 8 % $8.5300
- +300 10 % $8.3600
- +500 12 % $8.1800
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Waveshare SN65HVD230 CAN Board
Previous
The WaveShare TTL to RS485 (C) Galvanic Isolated Converter is designed to enable reliable data transmission between TTL and RS485 devices. It supports both point-to-point and point-to-multipoint communication, with up to 32 nodes on a network. Featuring galvanic isolation, the converter ensures signal integrity by preventing ground loops and reducing interference. Additionally, it includes protection features like 200W lightning protection, surge suppression, and 6KV ESD protection, making it ideal for industrial and commercial applications requiring long-distance, robust data transmission.
Specifications of WaveShare TTL to RS485 (C) Galvanic Isolated Converter
Power Supply: 3.3V to 5V
Interface Standards: TTL / RS485
Transmission Distance (TTL): Less than 10m
Transmission Distance (RS485): About 1200m
RS485 Interface Protection: 200W lightningproof, surge-suppress, 6KV ESD protection
Transmission Mode:
Point-to-point
Point-to-multipoint (up to 32 nodes, repeaters recommended for more than 16 nodes)
Terminal Resistance: 120R, enabled via soldering
Dimensions: 42.8mm x 15.2mm x 4.75mm
Datasheet of WaveShare TTL to RS485 (C) Galvanic Isolated Converter
Manufacture: Waveshare
Development Resources: Waveshare Wiki
