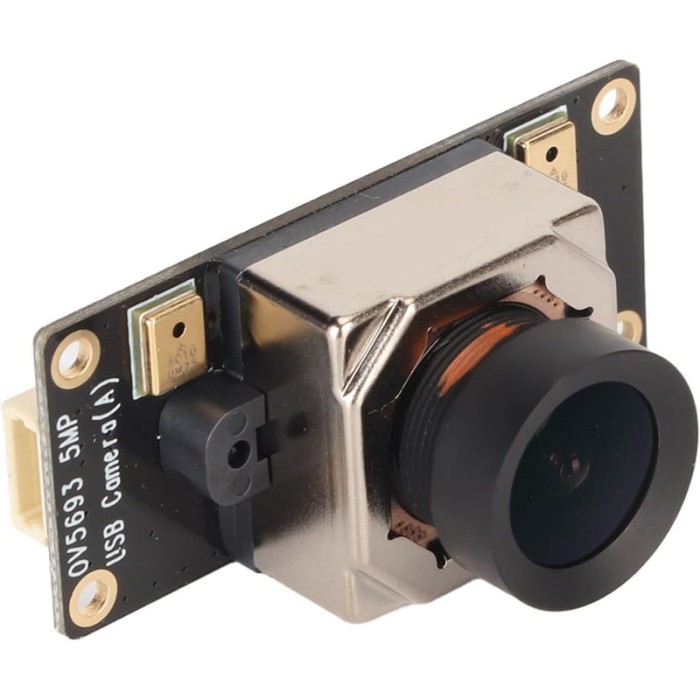

Waveshare OV5693 5MP USB Camera
$40.5000
In stock
SKU
MOD-05-005
Volume discounts:
- +10 4 % $38.9400
- +25 6 % $38.1600
- +50 8 % $37.3900
- +100 10 % $36.6100
- +300 12 % $35.8300
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
01Studio CanMV K210 mini AI Visual Object Recognition Module
Previous
The Waveshare OV5693 5MP USB Camera is a high-performance camera module designed for various applications, including security monitoring, computer vision, and multimedia. Equipped with a 5MP OV5693 sensor, this camera supports features such as automatic white balance (AWB), automatic exposure control (AEC), and automatic gain control (AGC). With its wide 135° field of view, autofocus capability, and USB2.0 interface, the camera is ideal for capturing high-resolution images and recording video in various formats. It is compatible with multiple operating systems, including Windows, Linux, and MacOS.
Specifications of Waveshare OV5693 5MP USB Camera
-
Pixel: 5MP
-
Sensor: OV5693
-
DSP: AWB/AEC/AGC
-
CCD Size: 1/4 inch
-
Aperture (F): 2.1
-
Focus Length (EFL): 2.5mm
-
Field of View (FOV): 135°
-
Focus Type: Autofocus
-
Interface: USB 2.0
-
Image Format: MJPG, YUY2
-
Static Image Resolution: 2592 × 1944
-
Video Recording (MJPG):
-
15 FPS @ 2592 × 1944
-
15 FPS @ 1920 × 1080
-
15 FPS @ 1280 × 720
-
-
Video Recording (YUY2):
-
3 FPS @ 2592 × 1944
-
5 FPS @ 1920 × 1080
-
10 FPS @ 1280 × 720
-
15 FPS @ 640 × 480
-
-
Operating Voltage: 5V ± 5%
-
Operating Temperature: 0°C ~ 50°C
-
Lens Size: 18.00 × 18.00 × 19.39 mm
-
Dimensions: 18.00 × 36.00 mm
-
OS Support: Windows, Linux, MacOS
Datasheet of Waveshare OV5693 5MP USB Camera
