Waveshare OV5693 5MP USB Camera (B)
$33.2500
In stock
SKU
MOD-05-006
Volume discounts:
- +10 4 % $31.9700
- +25 6 % $31.3300
- +50 8 % $30.6900
- +100 10 % $30.0500
- +300 12 % $29.4100
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Waveshare OV5693 5MP USB Camera
Previous

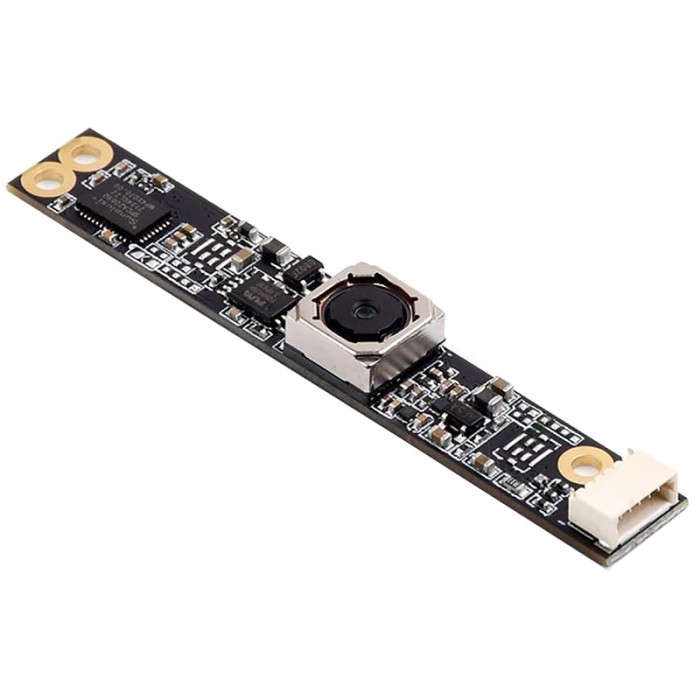

The Waveshare OV5693 5MP USB Camera (B) is a versatile camera module with a 5MP OV5693 sensor, providing high-quality image capture and video recording. It features advanced processing with automatic white balance (AWB), automatic exposure control (AEC), and automatic gain control (AGC). The camera supports a 75° field of view and autofocus, ensuring sharp images. With USB 2.0 connectivity, it can output images in MJPG and YUY2 formats, making it ideal for applications in surveillance, multimedia, and computer vision. It is compatible with multiple operating systems, including Windows, Linux, and MacOS.
Specifications of Waveshare OV5693 5MP USB Camera (B)
-
Pixel: 5MP
-
Sensor: OV5693
-
DSP: AWB/AEC/AGC
-
CCD Size: 1/4 inch
-
Aperture (F): 2.0
-
Focus Length (EFL): 3.2mm
-
Field of View (FOV): 75°
-
Distortion: < 1.0%
-
Focus Type: Autofocus
-
Interface: USB 2.0
-
Image Format: MJPG, YUY2
-
Static Image Resolution: 2592 × 1944
-
Video Recording (MJPG):
-
30 FPS @ 2592 × 1944
-
30 FPS @ 1920 × 1080
-
30 FPS @ 1280 × 720
-
-
Video Recording (YUY2):
-
1 FPS @ 2592 × 1944
-
10 FPS @ 1920 × 1080
-
10 FPS @ 1280 × 720
-
30 FPS @ 640 × 480
-
-
Operating Voltage: 5V ± 5%
-
Operating Temperature: 0°C ~ 50°C
-
Lens Size: 8.50 × 8.50 × 5.45 mm
-
Dimensions: 60.2 × 8.50 mm
-
OS Support: Windows, Linux, MacOS
Datasheet of Waveshare OV5693 5MP USB Camera (B)
