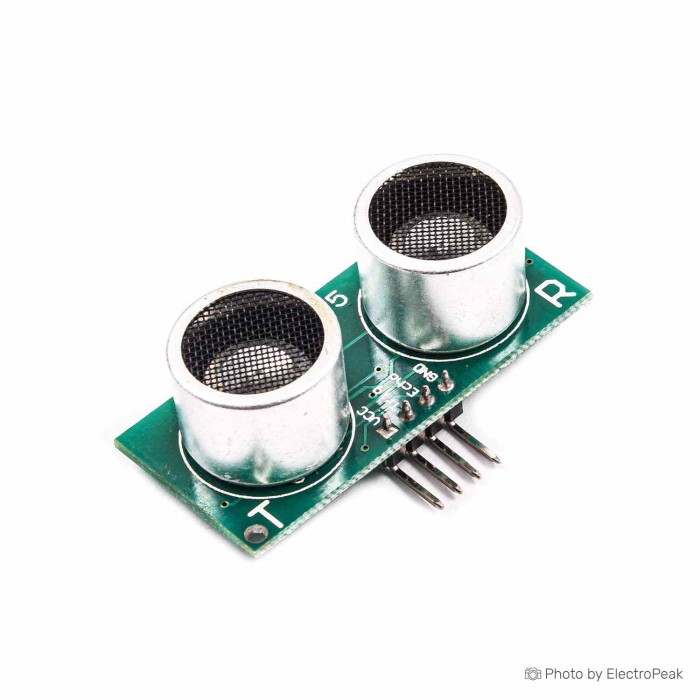

US-015 High Precision Ultrasonic Distance Sensor Module
$1.2500
In stock
SKU
SEN-07-017
Volume discounts:
- +100 6 % $1.1700
- +300 9 % $1.1400
- +500 10 % $1.1200
- +1000 13 % $1.0900
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
HC-SR04 Ultrasonic Sensor Module Bracket
Previous
Description
This US-015 ultrasonic sensor is a perfect device for distance measurement and object detection. It offers excellent range accuracy up to (1mm) and fairly stable readings at a very low cost. It requires two digital I/O pins (an output pin and an input pin) to interface with it.Â
US-015 Ultrasonic ranging module is capable of the 2cm ~ 4m non-contact distance measuring function, a contrast to the HC-SR04 Ultrasonic Ranging Sensor.
This module has a larger measurement range. The supply voltage is 5V and the static power consumption is less than 3mA. The resolution of US-015 is higher than 1mm and can reach 0.5mm with high ranging accuracy.
This module supports the GPIO Communication mode, which is stable and reliable with the watchdog.
Features
Model: US-015
Working Voltage: 5V
Working Current: 2.2mA
Interface: GPIO
Induction Angle: <15°
Distance Range: 2cm ~Â 400cm
Accuracy:Â 0.1cm + 1%
Operating Temperature: 0°C ~ 70°C
Pin Number: 4 Pins
Size: 45mm x 20mm
