UPS-Lite for Raspberry Pi Zero
$20.9500
In stock
SKU
DEV-22-012
Volume discounts:
- +25 4 % $20.1400
- +50 6 % $19.7300
- +100 8 % $19.3300
- +300 10 % $18.9200
- +500 12 % $18.5200
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Raspberry Pi UPS Power Extension Board With RTC
Previous

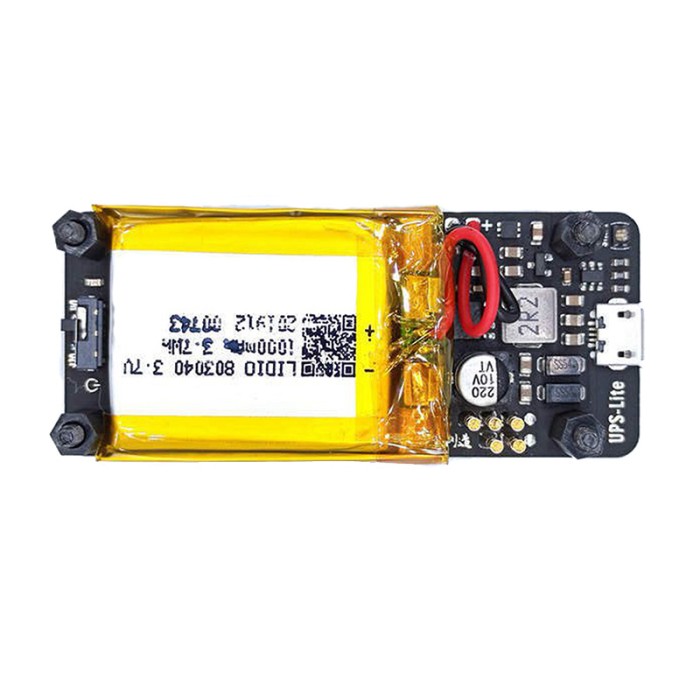

The UPS-Lite for Raspberry Pi Zero is a specially designed UPS power supply that integrates a fuel gauge chip (CW2015) and includes a 1000mAh lithium-polymer battery. This compact and efficient module provides up to 3 hours of standby time under tested conditions. It offers simple installation using a thimble method, making it an ideal power solution for Raspberry Pi Zero projects. Please note that the Raspberry Pi Zero is not included.
Specifications of UPS-Lite for Raspberry Pi Zero
- Charging Current: 400mA
- Output Voltage: 5V ±0.1V
- Output Current:
- 1.3A @ 5V (Battery powered only)
- 2A @ 5V (With external adapter)
- Electricity Measurement Accuracy: ±2% error
- Battery Capacity: 1000mAh lithium-polymer
- Standby Time: Up to 3 hours (Test condition: Raspberry Pi Zero W with network on, power parameters printed every 2 seconds)
- Installation Method: Thimble
- Dimensions: ---
Reference of UPS-Lite for Raspberry Pi Zero
GitHub - linshuqin329/UPS-Lite
