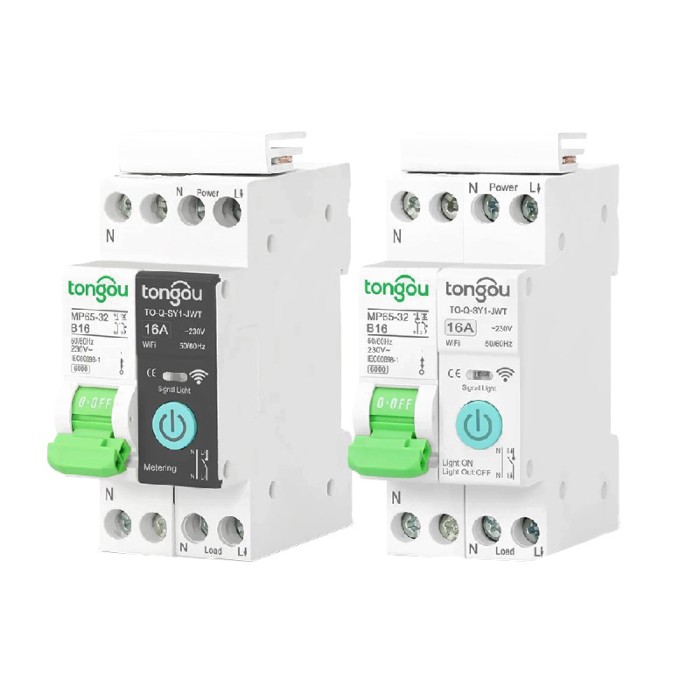

TONGOU Wifi Smart Circuit Breaker and Power Monitor (Tuya APP Compatible)

TONGOU offers a range of WiFi Smart Circuit Breakers and Power Monitors designed for intelligent energy management and enhanced safety. The TO-Q-SY1 model provides remote control capabilities via the "Smart Life" app, allowing users to schedule timings, set countdowns, and monitor electricity usage remotely. It supports third-party voice control through popular smart assistants like Amazon Alexa, Google Assistant, Tencent’s Xiaowei, and Baidu DuerOS. Meanwhile, the TOMP65 model serves as a reliable miniature circuit breaker with thermal-magnetic trip technology, ideal for residential and commercial applications. It provides robust protection with a rated short-circuit capacity of 6kA and an impulse withstand voltage of 6.2kV.

Specifications of TONGOU WiFi Smart Circuit Breaker and Power Monitor

TO-Q-SY1

• Working Voltage: AC 100-240V, 50/60Hz

• Current Frame: 63A (recommended usage under 40A)

• Wireless Type: Wi-Fi 2.4GHz, ZigBee (customizable)

• App Support: Android, iOS, HarmonyOS via "Smart Life" app

• Features:

  • Schedule timing, countdown, loop timing

  • Electricity metering with Class 2 accuracy

  • Remote monitoring and control

  • Supports third-party voice assistants (Amazon Alexa, Google Assistant, Tencent’s Xiaowei, Baidu DuerOS)

TOMP65

• Product Type: TOMP65-32 miniature circuit breaker

• Number of Protected Poles: 1P+N

• Network Type: AC

• Rated Current Range: 1…32A

• Trip Unit Technology: Thermal-magnetic

• Tripping Curve: B, C

• Rated Short-circuit Capacity (Icn): 6kA

• Energy Limiting Class: 3

• Rated Impulse Withstand Voltage: 6.2kV

• Electro-mechanical Endurance: ≥ 6000 cycles

• Connection Terminal: Screw terminal / Pillar terminal with clamp

• Connection Capacity: Rigid conductor up to 25mm²

• Fastening Torque: 2.0Nm

• Installation: On symmetrical DIN rail 35mm / Panel mounting

Manufacturer of TONGOU WiFi Smart Circuit Breaker and Power Monitor

• TO-Q-SY1: TONGOU TO-Q-SY1

• TOMP65: TONGOU TOMP65
