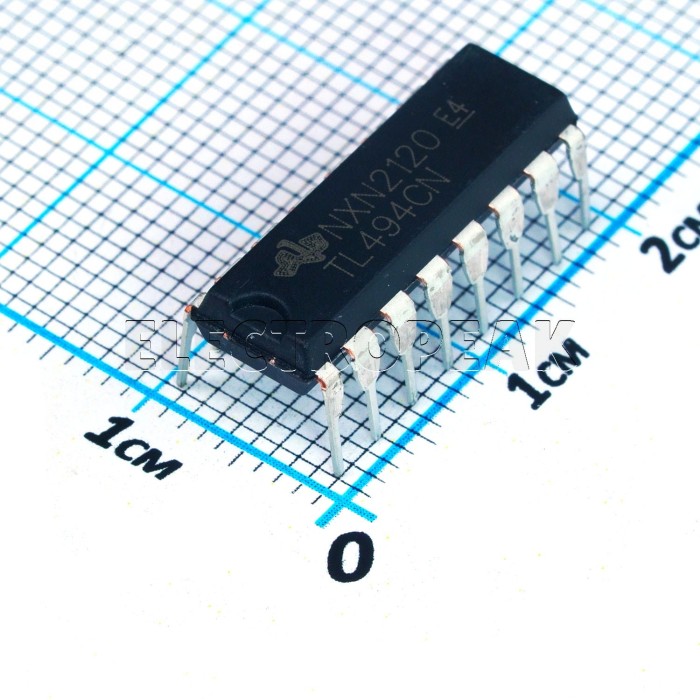

TL494CN, Switching Controller IC, DIP-16
$0.0910
In stock
SKU
S1-0045
Volume discounts:
- +100 4 % $0.0876
- +500 6 % $0.0859
- +1000 8 % $0.0841
- +5000 9 % $0.0824
- +10000 11 % $0.0807
TL494CN, Switching Controller IC, DIP-16 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
UC3844AD, Switching Controller IC, SO-14
Previous
The TL494 is a PWM (Pulse Width Modulation) controller IC available in a DIP-16 package. This IC is specifically designed for switching power supplies and DC-DC converters, offering precise voltage and current regulation. With features such as dual error amplifiers, an internal oscillator, and single or dual PWM operation, the TL494 is a popular choice among electronic engineers. Its flexible design makes it ideal for industrial and commercial power supply circuits.
Specifications of TL494 IC DIP-16
- Input Voltage: 7 to 40V
- Operating Frequency: Adjustable from 1 Hz to 300 kHz
- Built-in Features: Dual error amplifiers, internal oscillator, overload protection
- Package: DIP-16 with dimensions 19.3x6.35x3.3 mm
- Power Consumption: Low (approximately 1 mA in standby mode)
- Operating Temperature Range: 0°C to 70°C
- Additional Features: Duty cycle control up to 100%
| Package | DIP-16 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| Mounting Type | Through Hole |
| Components - Type | Switching Controllers |
