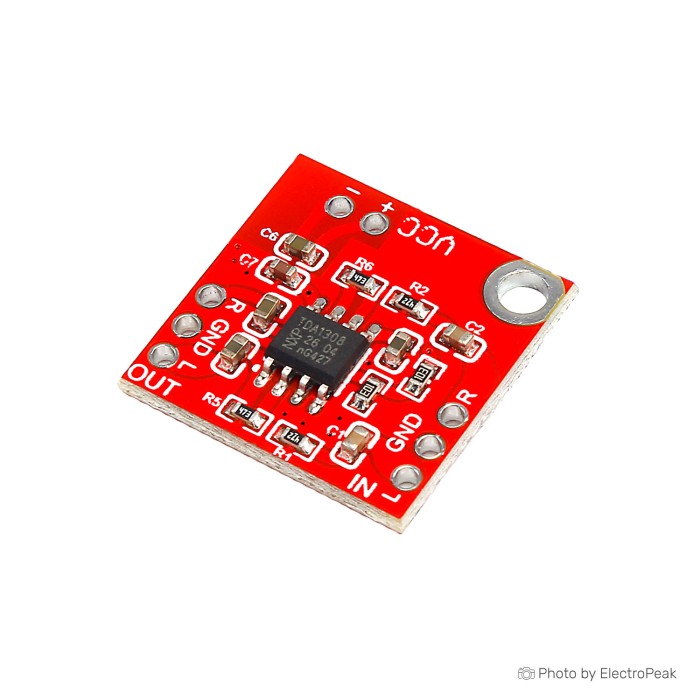

TDA1308 Stereo Headphone Amplifier Board
$0.4900
In stock
SKU
SEN-17-147
Volume discounts:
- +100 4 % $0.4720
- +500 6 % $0.4620
- +1000 8 % $0.4530
- +5000 9 % $0.4440
- +10000 11 % $0.4350
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
5V Bluetooth MP3 Decoder Car FM Radio Module Support TF USB AUX w/ Remote Control
Previous
The TDA1308 is an integrated class AB stereo headphone driver contained in an SO8 or a DIP8 plastic package. The device is fabricated in a 1 mm CMOS process and has been primarily developed for portable digital audio
Features of TDA1308 Stereo Headphone Amplifier Board:
- Wide temperature range
- No switch ON/OFF clicks
- Excellent power supply ripple rejection
- Low power consumption
- Short-circuit resistant
- High performance
- High signal-to-noise ratio
- High slew rate,low distortion
- Large output voltage swing.
Specifications of TDA1308 Stereo Headphone Amplifier Board:
- Working voltage:3V-6V
- Size:20*20mm
