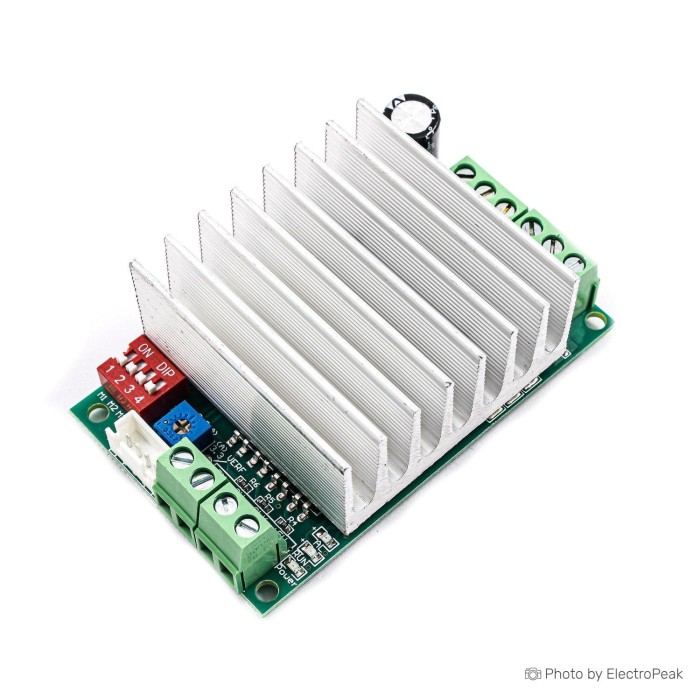

TB6600 Stepper Motor Driver
SAVE
As low as
$4.2500
In stock
Only %1 left
SKU
MTR-09-013
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
Operating voltage DC 10V-45V. DC32V switching power supply is recommended.
high-speed optical coupling 6N137, ensure high speed without losing step.
Toshiba™s new high current, high voltage TB6600HG new original chip, there are low-pressure shut-off, overheating parking and over-current protection circuit, short-circuit protection and increased compared to TB6560.
Rated maximum output reached: ± 4.5A.
for 4.2A 42,57,86 within the two-phase / four-phase / four-wire / six-wire stepper motor.
Automatic half current function.
Subdivision: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
Volume: Width Length 82 * 50 * high 35 (MM)
Features
- the output current is infinitely adjustable to meet your various application requirements.
- automatic half current function. And a semi-automatic flow switch, easy to use.
- the use of high-speed optical coupling 6N137 ensure high-speed without losing step.
- printed on the back panel are subdivided setup instructions.
- used to increase the heat sink, good heat dissipation.
- output short-circuit protection, the use of mind.
- using common anode input mode, there are two input terminals, wiring more convenient.
