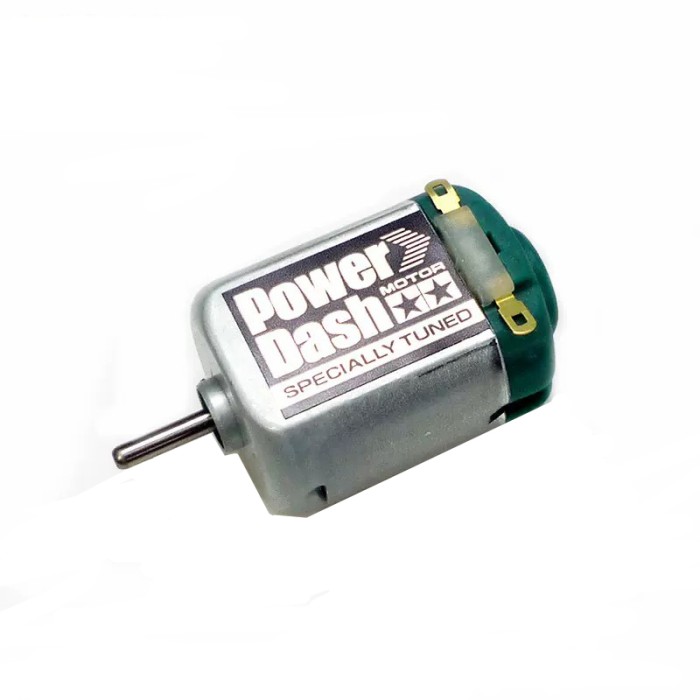

Tamiya Power Dash Mini DC Motor
$6.5000
In stock
SKU
MTR-01-013
Volume discounts:
- +25 4 % $6.2400
- +50 6 % $6.1100
- +100 8 % $5.9800
- +300 10 % $5.8500
- +500 12 % $5.7100
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
DC Motor JOHNSON 395
Previous
The Power Dash Motor offers high torque, ranking second among all Tamiya motors and first among race-legal ones. Its rev performance falls between the Hyper-Dash 3 Motor and the Sprint Dash Motor. It is power-demanding, requiring high-capacity batteries for optimal performance.
The initial version (15317-350), released in 2002, achieves over 30,000rpm with a green endbell cap, silver metal housing, and bronze brushes. Subsequent versions (15317-400 and 15317-460) replaced 'R/C Mini 4WD' with 'Specially Tuned' on the sticker. The 15317-400 retains the bright green endbell cap, slightly lagging in performance compared to the 15317-460 with a deeper green endbell cap. Both versions utilize carbon brushes for extended lifespan and improved performance, achieving 23,600rpm without load for the 15317-460, uniquely labeled "For Advanced Users".
For optimal performance, pair the motor with large-diameter wheels and a 3.7:1 gear set to achieve balanced performance in your Mini 4WD car.
Specifications of Tamiya Power Dash Mini DC Motor
- Model No.: 15317
- Input Voltage: 2.4-3.0V
- RPM: 19,900-23,600
- Current Consumption: 2.5-3.3A
- Torque: 19mN-m(20.4gF-cm)
- Weight: 17.7g
- Dimensions: 25x20x15mm (LxWxH)
- Shaft length: 7.7mm
