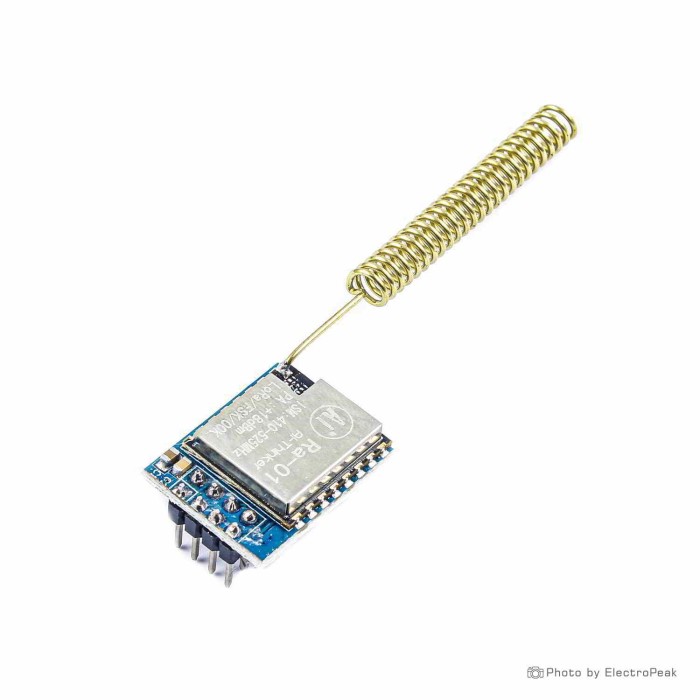

LoRa Ra-01 SX1278 Wireless Transciever Module
$4.5000
In stock
SKU
COM-03-074
Volume discounts:
- +25 4 % $4.3300
- +100 6 % $4.2400
- +300 8 % $4.1600
- +500 10 % $4.0700
- +1000 11 % $3.9900
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
YwRobot 38KHz Infrared (IR) Receiver Module
Previous
The series of modules RF chip SX1278 mainly uses LoRa remote modem for ultra-long distance spread Letter, strong anti-interference, to minimize current consumption. With the help of SEMTECH's LoRa „¢Lee modulation technology, SX1278 has a high sensitivity of more than -148dBm, +20dBm power output,Transmission distance, high reliability. At the same time, relative to the traditional modulation technology, LoRa modulation technology in the anti-Blocking and selection also has a clear advantage to solve the traditional design can not take into account the distance,Anti-jamming and power consumption problems.
Features of LoRa Ra-01 SX1278 Wireless Transciever Module:
- Spread spectrum modulation technology
- communication distance 15 km (Using effective active antenna & Lora WAN in direct view)
- + 20dBm-100mW constant RF power output when voltage changes
- High sensitivity: down to -148dBm
- Half-duplex SPI communication
- Programmable bit rate up to 300kbps
- Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes
- 127dB RSSI dynamic range
- Automatic RF signal detection, CAD mode and ultra-high speed AFC
- Packets with CRC up to 256 bytes
- Small volume double row stamp hole patch package
- With shielded case
- Spring antenna (Ra-01)
