SHTC3 Digital Temperature and Humidity Sensor
$0.8000
In stock
SKU
SEN-10-076
Volume discounts:
- +100 6 % $0.7500
- +300 8 % $0.7400
- +500 10 % $0.7200
- +1000 13 % $0.7000
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More

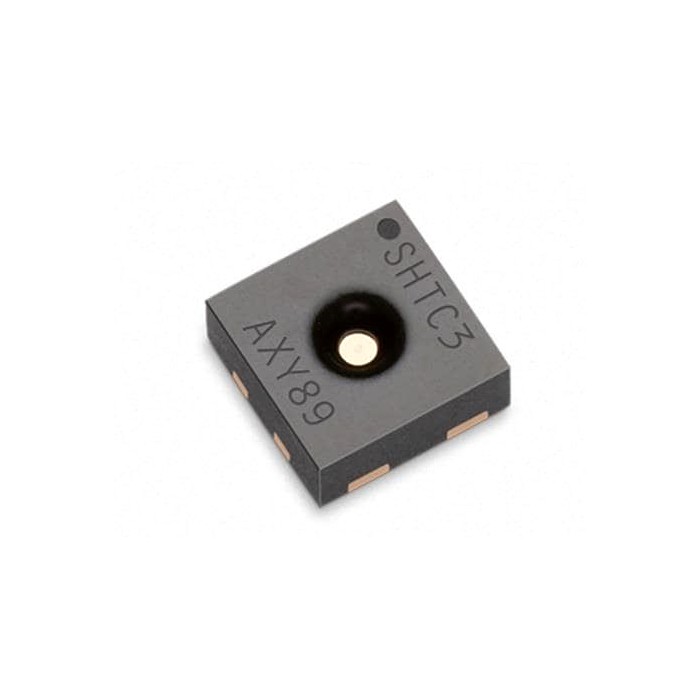

The SHTC3 is a standard version humidity and temperature sensor IC in a 4 pin DFN package. It has become an industry-standard in terms of form factor and intelligence. This device provides calibrated, linearized sensor signals in digital I2C format. The SHTC3 sensor contains a capacitive type humidity sensor, bandgap temperature sensor, and specialized analog and digital integrated circuit on a single CMOSens chip. This yields an unmatched sensor performance in terms of accuracy and stability as well as minimal power consumption. The SHTC3 offers outstanding performance to price ratio due to its proven reliability and long-term stability.
Features of SHTC3 Digital Temperature and Humidity Sensor:
- Low power consumption and excellent long term stability
- Humidity sensor:
- 0.01%RH (12bit) relative humidity resolution
- Hysteresis: ±1%RH
- Repeatability: ±0.1%RH
- Relative humidity accuracy of ±2%RH
- Relative humidity response time of 8s
- Operating relative humidity range from 0%RH to 100 %RH
- Long-term drift: ±0.25%RH/y
- Temperature sensor:
- 0.01°C (14bit) temperature resolution
- Repeatability: ±0.1°C
- Temperature accuracy of ±0.2°C
- Relative humidity response time of 5s to 30s
- Operatingtemperature range from -40°C to 125°C
- Long-term drift: ±0.02°C/y
- Supply voltage range from 1.6V to 3.6V
