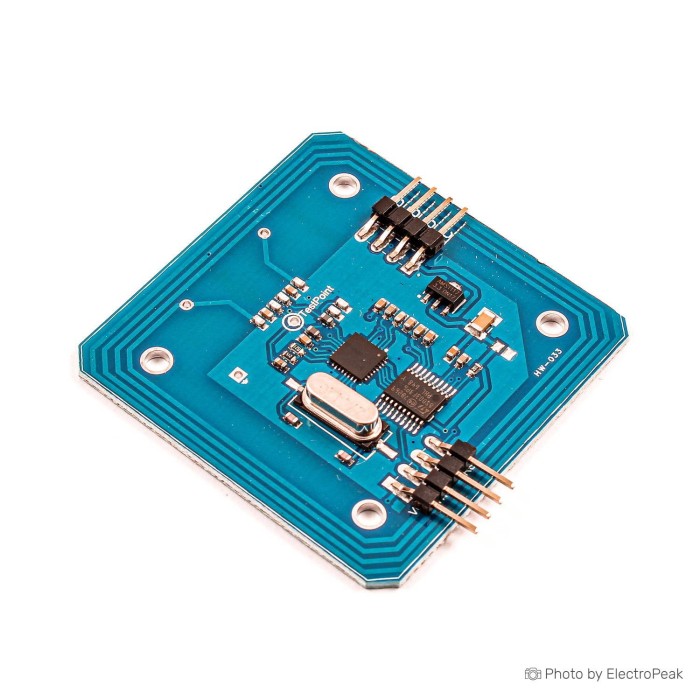

RC522 RFID Reader/Writer Module - 13.56MHz, TTL Interface
$9.7500
In stock
SKU
RFID-01-020
Volume discounts:
- +25 4 % $9.3700
- +50 6 % $9.1800
- +100 8 % $9.0000
- +300 10 % $8.8100
- +500 12 % $8.6200
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
RDM6300 RFID Reader Module - 125KHz, Serial Interface
Previous
Description
MF RC522 is suitable for a variety of applications based on for ISO/IEC 14443A standard and requires low-cost, small size, high performance and single-supply contactless communication. For Three-table; on-board units; public transportation terminals; portable handheld devices; contactless public telephones.
Features
Serial power supply voltage (VCC): 5V
RX serial port reception
TX serial port transmission
GND power ground
Product model: For MIFARE RC522
Sleep current: <80uA
Peak current: <30mA
Working frequency: 13.56MHz
Card reading distance: 0~45mm
Interface: UART TTL
Baud rate: 115200
Data transmission rate: up to 10Mbit/s
Ambient operating temperature: -20~80°C
Storage temperature: -40~85°C
Humidity: Relative humidity 5% - 95%
Agreement: for ISO14443A compliant, for Mifare1 S50, S70
