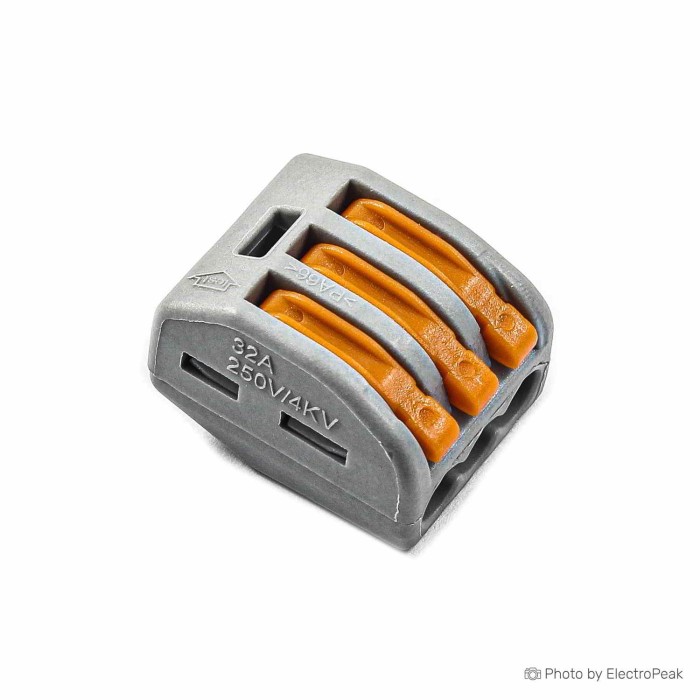

PCT-213 Push Wire Connector - 3-Pin Conductor
$0.1550
In stock
SKU
CAB-01-096
Volume discounts:
- +100 5 % $0.1480
- +500 6 % $0.1450
- +1000 9 % $0.1410
- +5000 11 % $0.1380
- +10000 14 % $0.1340
PCT-213 Push Wire Connector - 3-Pin Conductor is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
SMA Male To SMA Male Straight Adapter
Previous
PCT Spring Lever Connector [212, 213, 215] package contains of a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in maximum 7KW Power. This connector consists of a PA shell, copper thin surface cathode diversion, and a spring lever from nickel-chromium alloy steel. Its insulation shell can tolerate a high voltage up to 4kV. Because of the tranparent shell, diagnosing and troubleshooting of wire connection is visual and so easy. This connector is easy to use and achieve strongly connection.
This connector is presented with 3 optional models with different weight and prices. PCT-212 is a 2 wire connector, PCT-213 is a three-wire connector, and PCT-215 is a 5 wire connector.
Features of PCT-213 Push Wire Connector - 3-Pin Conductor:
- Type: Wire connector
- Model: PCT-213
- Port Number: 3
- Suitable hard wire: 0.08 to 2.5 mm2
- Suitable soft wire: 0.08 to 4.0 mm2
- Strip length: 9 - 11 mm
- Rated Voltage: 250V
- Rated Current: 32A
