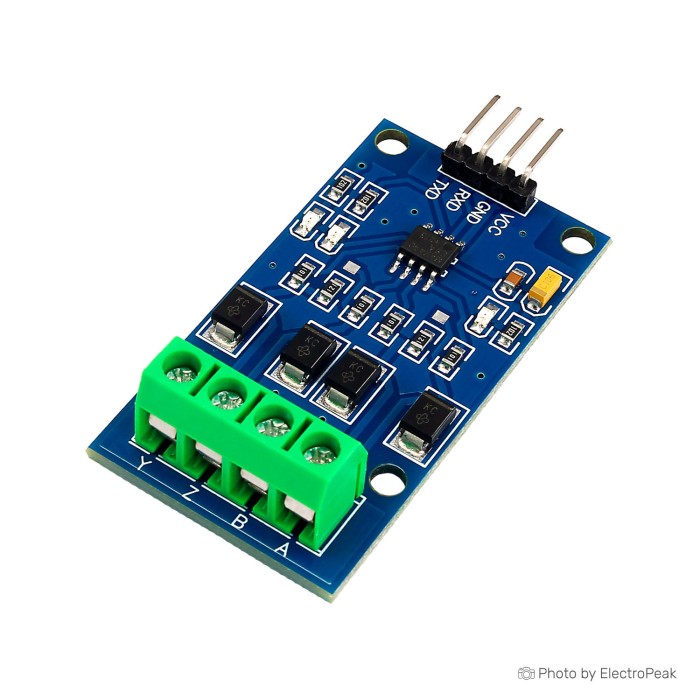

MAX490 RS422 to TTL Bidirectional Converter Module
$1.2500
In stock
SKU
COM-05-081
Volume discounts:
- +100 7 % $1.1600
- +300 10 % $1.1300
- +500 12 % $1.1000
- +1000 14 % $1.0700
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
TTL to RS485 Converter Module
Previous
MAX490 RS422 to TTL Converter Bidirectional Module interface is two-way communication. This module provides BYZA ports that are super long transmission 1000 meters and ESD 15KV protection.
The module has 120-ohm termination resistors, which can effectively reduce the interference of long-range communication. It also includes a TVS diode, the power indicator light, the data receiving and sending indicator light and panoramic view of state data.
The TTL side of the module uses 5V DC power supply TXD RXD compatible with a 5V logic signal.
It also uses the original imported MAX490 chips, stability and communication speed is far more than domestic products, up to 2.5Mbps.
Specification of MAX490 RS422 to TTL Bidirectional Converter :
- Main Chip: MAX490
- Input Voltage: 5V
- Interface: TTL, RS422
- Data Rate: 2.5Mbps
- Pin Number: 4 Pins
- Module size: 50mm x 27mm
