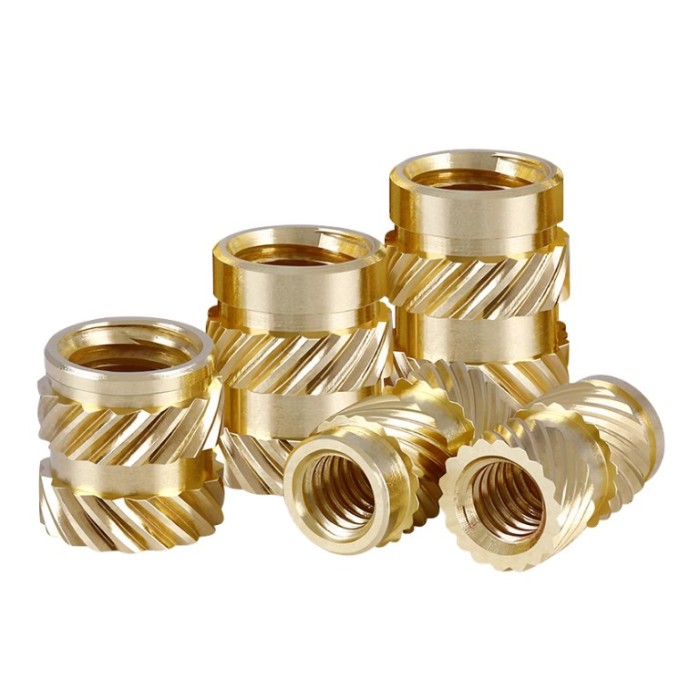

M3 Threaded Insert Nut- 5mm Outer Diameter
SAVE
As low as
$0.0190
In stock
Only %1 left
SKU
3DP-01-186
M3 Threaded Insert Nut- 5mm Outer Diameter is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
M4 Threaded Insert Nut- 5.5mm Outer Diameter
Previous
Description of M3 Threaded Insert Nut:
Made of brass material, high hardness and durable. Provides good mechanical properties with increased corrosion and heat resistance
The knurled insert nut has a guide, so no countersink is required. The surface is smooth, firm and even, and easy to install.
It can be installed into a plastic matrix by ultrasound or heat during the injection molding process.
Can be widely used in 3D printing injection molding to achieve tight fixation.
Because the outer diameter of the insert is embossed, it forms certain friction and bites force with the brass insert after molding, which can be fixed on the inside and will not fall off. Has a certain torsion and tension.
Specification of M3 Threaded Insert Nut:
- Material: Brass
- Thread Size: M3
- Pitch: 0.5mm
- Length: 3mm, 4mm, 5mm, 6mm,8mm (Optional)
- Outer Diameter: 5mm
