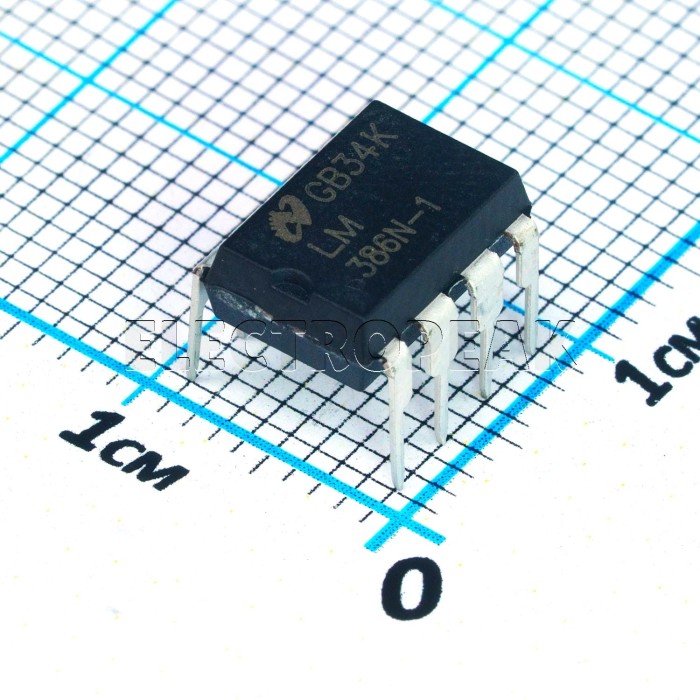

LM386N, 1W Audio Amplifier, DIP-8
$0.0530
In stock
SKU
S1-0011
Volume discounts:
- +100 4 % $0.0510
- +500 6 % $0.0500
- +1000 8 % $0.0490
- +5000 9 % $0.0480
- +10000 12 % $0.0469
LM386N, 1W Audio Amplifier, DIP-8 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
TDA2822M SMD, 1W Audio Amplifier, SO-8 (SOP-8)
Previous
The LM386N is a low-voltage audio amplifier IC available in a DIP-8 package. Designed for low-voltage consumer applications, it has an internal gain of 20, which can be increased up to 200 by adding a resistor and capacitor between pins 1 and 8. The inputs are ground-referenced, and the output is automatically biased to half the supply voltage. The quiescent power drain is only 24 milliwatts, making it suitable for use in portable and battery-operated devices.
Specifications of LM386N Audio Amplifier IC
- Operating Supply Voltage: 4V to 12V or 5V to 18V
- Output Power: 0.325W into 8Ω load with a 9V supply voltage
- Internal Gain: 20 (can be increased up to 200 with external components between pins 1 and 8)
- Quiescent Current Drain: 4mA
- Dimensions: 9.60mm x 6.35mm x 3.81mm
Datasheet of LM386NÂ Audio Amplifier IC
For detailed technical information, refer to the LM386N Datasheet.
| Package | DIP-8 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +70 C° |
| Function | Speaker |
| Mounting Type | Through Hole |
| Components - Type | Audio Amplifiers |
| Output Power | 1W |
